Raise your hands if you love the notch on iPhone X, XS, XR or XS Max! 🙋‍♀️🙋‍♂️

Notched iPhones are in!

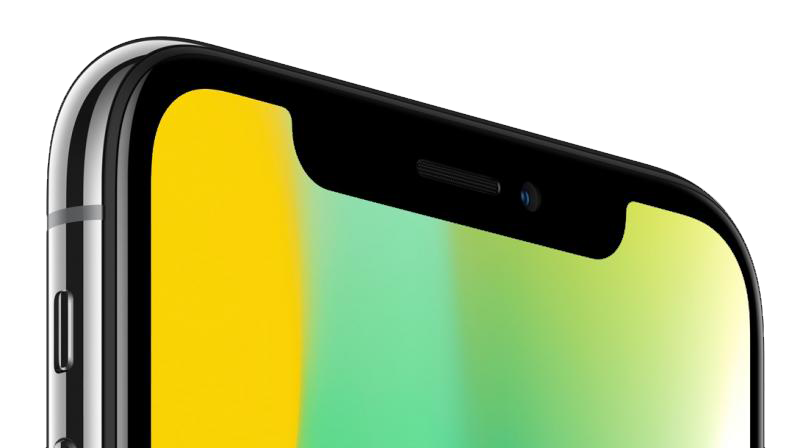

The notched iPhone with rounded corners.

Okay. Not many hands went up there, but I'm sure as a web developer (or designer) you will definitely love some extra real estate to play around with? A beautiful edge-to-edge display—well, almost—makes the notch at the top of the bezel disappear for most mobile users.  At least to me the notch has never posed a problem.

As long as I am surfing the web in portrait mode most websites look and work great, and the notch doesn't appear on my list of nits to worry about for most of the time.

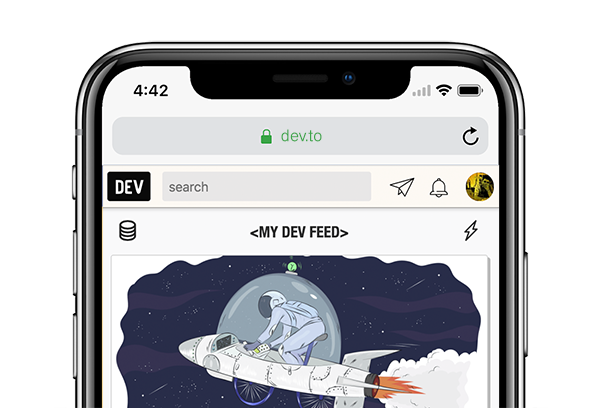

Notch on Dev.to in portrait!
notch in portrait mode

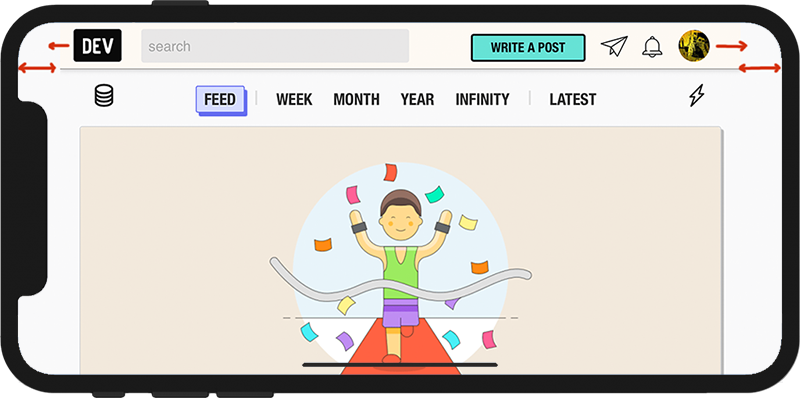

But it is the landscape mode where the notch pokes in the eye. Take a look at the Dev blog site, for example:

Safe gutters on dev.to

If you look closely, you'll notice that the header ends abruptly, both on the left and the right hand side, leaving behind a feeling of a bug in the layout. This happens even when width: 100% is specified on CSS, which is kind of super weird.

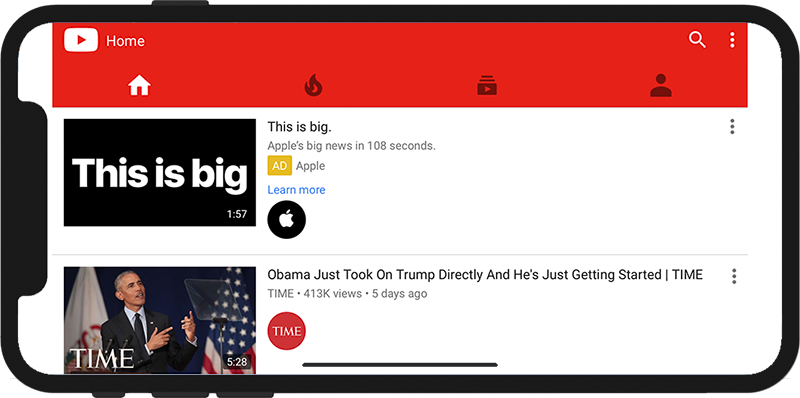

The situation is worse for Youtube:

Default gutters on youtube.com

A large header hanging in the middle of the screen is terrible, I'd say.

It feels particularly bad on Youtube because we normally watch videos in landscape mode and after every video you get to see this blunt rectangle in blood-red color with sharp corners. The header isn't applied to the entire width of the screen as expected, even when Youtube has its width set to 100% in the layout.

The rule fails on a notched phone.

Update: Google has announced that Pixel 3—like the new iPhones—will carry a notch. The following blogpost explains a graceful technique to handle the notch correctly for all your content in landscape mode. Without using any javascript or device specific css hacks. Shine away you crazy diamond!

There is blank gutter area on both sides of the webpage because mobile browsers like Safari (on iOS 12+) and Chrome v69 or higher on notched phones introduce/force these white bars on the webpage by adding a little bit of extra margin. They do this to avoid older content getting obscured by the notch but it also means that some of our basic assumptions about the web are no longer true. That setting width of an element to 100% will no longer stretch the element to occupy the full screen width of the device. Weird, I know!

This extra margin thing is called a safe area margin, and is meant for non-rectangular screens. Now the question is how to handle the notch correctly for your website and can you do it without using any sort of non-standard hacks like the safe area margins?

Enter viewport-fit meta tag!

Here's a simple fix to use all the extra space:

To tell the browser to expand into the display cutout (notched) area, set the viewport-fit property to cover like so:

<meta name='viewport' content='initial-scale=1, viewport-fit=cover'>

viewport-fit cover for notched viewports

This should do the trick, especially for the sticky header on top, but also for the rest of the content on page. If you want to apply full screen width just to the header but avoid the body or main content from going under the notch, you can use an environment variable (not recommended) on a css class like so:


.content {
  padding: 16px;
  padding-left: env(safe-area-inset-left); /* Apply safe area */
  padding-right: env(safe-area-inset-right);
}

/* The are four safe-area padding options:
* padding: env(safe-area-inset-top)
*         env(safe-area-inset-right)
*         env(safe-area-inset-bottom)
*         env(safe-area-inset-left);
*/

safe-area environment variables

Basically, there are four options to handle the notch from all four sides of the notched mobile, providing a safe area for the webpage's overall environment. While these insets do solve rendering content away from the notched region mostly, it is generally not recommended to use these properties (special hacks) created specifically for non-rectangular viewports simply because they are non-standard.

There's a much simpler solution to avoid the clash of notch with content using simple and _standard_ CSS rules. For our solution we'll use ordinary width definitions per single @media-query, like so:


/* scss snippet */

@media only screen and (orientation: portrait) {
    body {
        .shrink {
            width: 95%;
        }
    }
}

@media only screen and (orientation: landscape) {
    body {
        .shrink {
            width: 90%;      /* Shrink a little more to avoid the notch. */
        }
    }
}


.center {
    text-align: center;
    margin: 0 auto;
}


Media-query to handle notch

That's it! And then in your HTML, the main container element can sit with css classes shrink center to work across all devices and all viewports with just one definition.

<header>
    <!--Sticky header with 100% width running across the notched screen -->
<header>
<main class="shrink center">
    <!-- Body here -->
</main>
<footer>
    <!-- Full screen width under the notch -->
</footer>

I prefer handling the notch this way because it helps us avoid using device specific hacks (the safe-area-insets) on our layout. That's how Bubblin scales from an Apple Watch to the iPad to a desktop all the way up to an OLED TV. 🎩

There are few other solutions floating around on the web that solve the same problem using javascript but I do not recommend that. CSS is better suited for solving this layout nit than javascript ever will be. Also, less code often means better maintainability, better scalability etc.

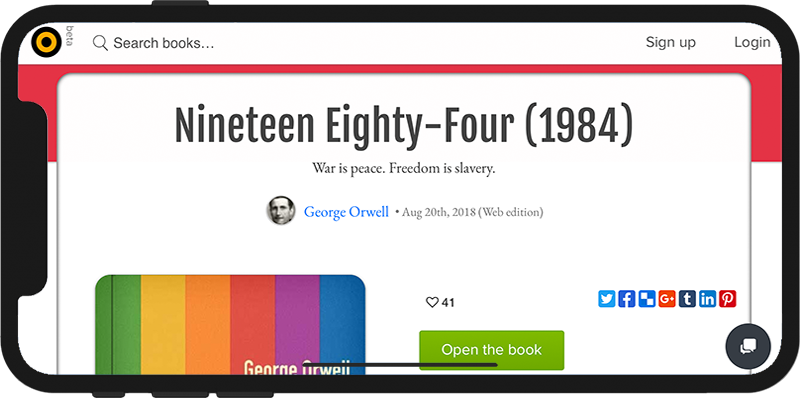

Bubblin Superbooks

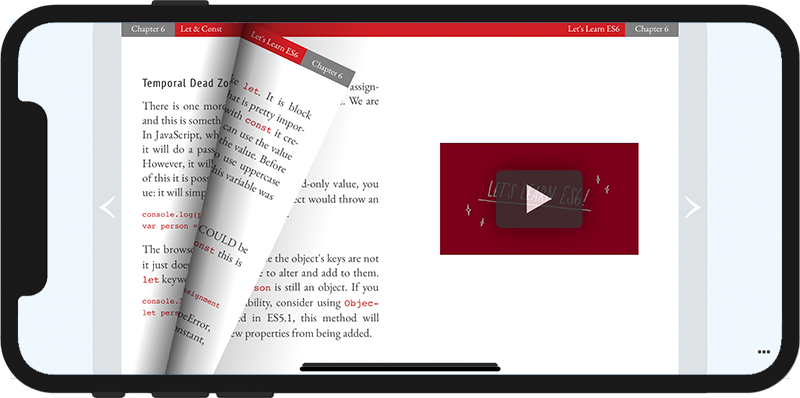

Superbook landscape mode

That's all for this post folks.

Now, remember this… when the notch pokes you in the eye again, you poke them back! ❤️
