by Matthew Choi

Building Tesla’s Battery Range Calculator with React (Part 1)

In this series of articles, I will walk you through the process of building Tesla’s battery range calculator with React.

In this tutorial, we’ll build the React version of Todd Motto’s Building Tesla’s battery range calculator with Angular 2 reactive forms.

So this post will reuse some materials (data, images, and css style). We will focus on rebuilding it in React way.

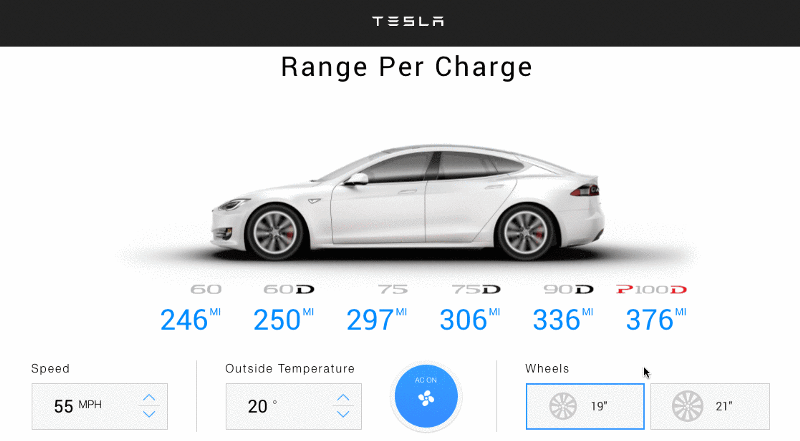

This is the final GIF image of our application.

? Check out the live version before we get started.

? You can also check out the source code.

Now let’s create the application step by step.

Note that you may need some basic React knowledge to follow this tutorial. See the following resources:

1. Project Setup and create-react-app

1.1 Requirements

The tools and versions I used during the implementation of this app:

node v7.3.0npm v3.10.10

1.2 create-react-app

creat-react-app is a new tool open-sourced by Facebook for fast react application development, which allows you to easily start React applications without complex setups. You can easily install our project react-tesla-range-calculator and start the application right away with the following command:

  • npm install -g create-react-app
  • create-react-app react-tesla-range-calculator
  • cd react-tesla-range-calculator
  • npm start

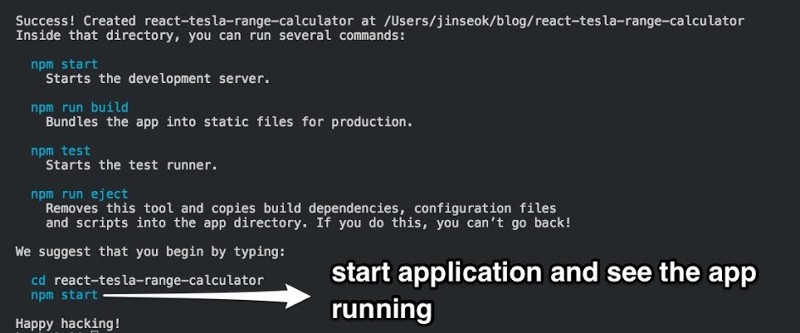

Create a new application through creat-react-app and open http://localhost:3000/ to check the generated application.

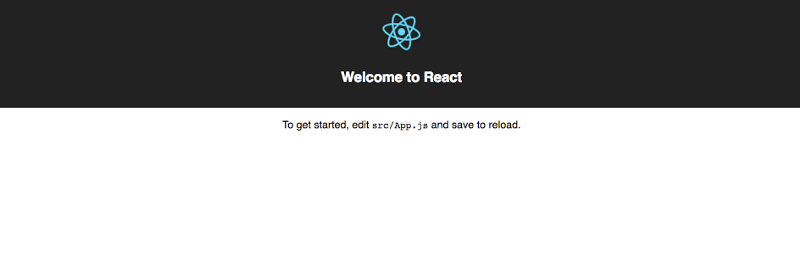

If you see the screen below, the project has been successfully set up.

Before we start the project, we need to touch the project source structure. Just leave the files we need for the project and delete the rest. (Delete App.test.js, logo.svg)

Now our src directory should look like this:

src - App.css - App.js - index.css - index.js

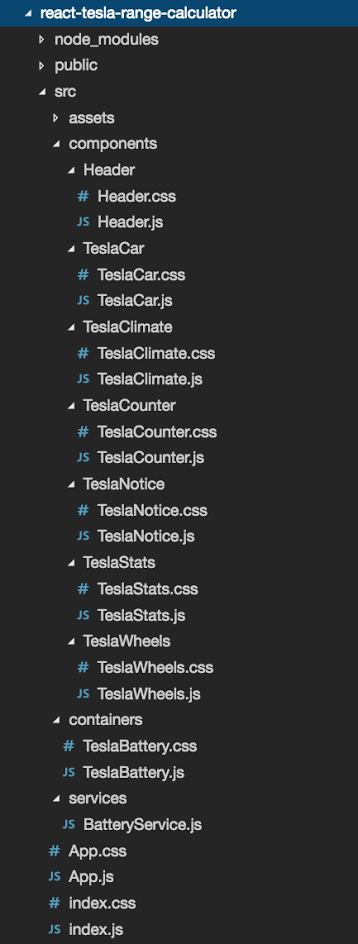

Here is project source structure :

1.3 Project Entry Point

First we need to set the entry point to start our Tesla app. Thankfully it’s already created by create-react-app.

src/App.js is the entry point for our app.

First up, change your App.js to this:

import React, { Component } from 'react';import './App.css';
class App extends Component {  render() {    return (      <div>        <h2>Let's get started</h2>      &lt;/div>    );  }}
export default App;

When you save the file, it will be automatically compiled and you can see the updated screen.

1.4 Project images/assets

All images required for this project can be downloaded from:

Unpack assets.zip and place all images in the src/assets directory and place the downloaded favicon.ico in the source root.

react-tesla-range-calculator/src/assets
Any time you feel like if you’ve missed something or unsure if you’re doing right, you can refer to the source code as a reference.

1.5 Data service

The data you can get from Tesla site is hard-coded and very large, so we’ll use Todd’s new version of the data to make it easier to use. link

We do not use the Injectable decorator used in Angular2, so we will copy only the export part, just save it in src/services/BatteryService.js for now. Later, we will use import it in TeslaBattery container.

We will revisit this data service later.

2. Breaking Down the UI

Almost all React application UIs consist of a composition of components. For example, a weather app consists of a component that displays a local name, a component that displays the current temperature, and a graph component that represents a five-day forecast. For this reason, it is a good idea to decompose the UI into component units before developing the React app.

See Thinking in React for an approach to looking at an application as a combination of components.

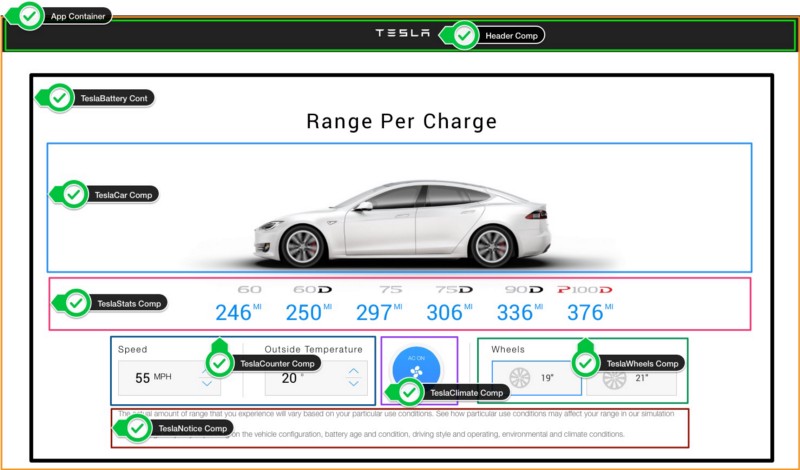

The layout of this application is shown below

The UI is represented by a component tree as follows.

<App> -- Application entry point <Header></Header>  <TeslaBattery> -- Container 	<TeslaCar />     -- Presentational Component 	<TeslaStats />   -- Presentational Component  	<TeslaCounter /> -- Presentational Component 	<TeslaClimate /> -- Presentational Component 	<TeslaWheels />  -- Presentational Component 	<TeslaNotice />  -- Presentational Component  </TeslaBattery></App>

2.1 Container and Presentational Components

In the above mentioned component tree, we can see that it is classified as Container Component and Presentational Component.

This is a useful pattern that can be used when developing an application with React. It is easier to reuse by dividing components into two categories.

* Container Component (stateful component): - Are concerned with how things work. - In general, except for some wrapping divs, they do not have their   own DOM markup and have no style. - Provide data and actions to presentational or other container components. - Are often stateful, as they tend to serve as data sources.
* Presentational Component (stateless component): - Are concerned with how things look. - Usually have some DOM markup and styles of their own. - Receive data and callbacks exclusively via props. - Rarely have their own state (when they do, it’s UI state rather than data).

What are the benefits of using these patterns?

  • Better separation of concerns
  • Better reusability
  • Extract layout components to prevent duplication
For more details, see Presentational and Container Components

3. Header component

Let’s create our first React component, Header. The Header component is simply a black bar with the Tesla logo and text.

Create the src/components/Header directory, create a Header.js file in it, and enter the following code:

import React from 'react';import './Header.css';import logoUrl from '../../assets/logo.svg';
const Header = () => (  <div className="header">    <img src={logoUrl} alt="Tesla" />  </div>)
export default Header;
Here, the component is in the form of a function (ES6 Arrow Function). A component declared in this form is called a functional component. If there is no state and the lifecyclemethod is not needed, it is a good pattern to declare it as a function type. Functional components are suitable for Presentational Component because they have no state and they depend only on the props that is received from higher components.

3.1 Header Component Style

Create a Header.css file in the src/components/Header directory and type the following style:

.header {  padding: 25px 0;  text-align: center;  background: #222;}
.header img {  width: 100px;  height: 13px;}
There are a number of ways to apply styles to components, but here we will create each component directory in the src/components directory and pair js and css files each time we create a component.

3.2 Import Header component in App Container

Now that you’ve created the Header component, let’s use import in the entry point App.js.

import React, { Component } from 'react';import './App.css';import Header from './components/Header/Header';
class App extends Component {  render() {    return (      <div className="App">        <Header />          </div>    );  }}
export default App;

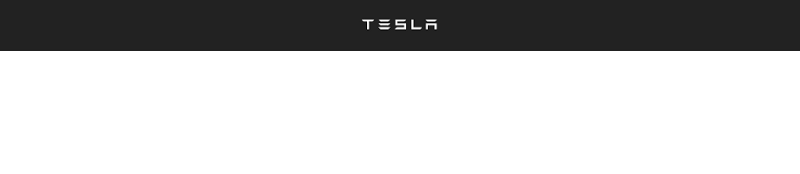

When you save all the modified files, they will be updated automatically and you should see the Tesla logo as follows:

4. TeslaBattery Container

In our app, the TeslaBattery component is responsible for creating and managing data and state as Container Component, passing it to other Presentational Components, performing a callback function and changing its state.

By inheriting React.Component, TeslaBattery must have a render method, optionally it can initialize its state through the constructor, and implement other methods such as lifecycle callbacks.

lifecycle callbacks are useful when you want to render or update components, or to receive notifications at different stages of lifecycle.

Create the src/containers directory, create a TeslaBattery.js file in it, and enter the following code:

import React from 'react';import './TeslaBattery.css';
class TeslaBattery extends React.Component {  render() {    return (      <form className="tesla-battery">        <h1>Range Per Charge</h1>      &lt;/form>    )  }}
export default TeslaBattery;

4.1 TeslaBattery Container Style

TeslaBattery.css only holds a minimal style.

.tesla-battery {  width: 1050px;  margin: 0 auto;}
.tesla-battery h1 {  font-family: 'RobotoNormal';  font-weight: 100;  font-size: 38px;  text-align: center;  letter-spacing: 3px;}

The components to be created in the future will be configured in the TeslaBattery container sequentially.

5. TeslaNotice Component

Let’s create a static text part with a TeslaNotice component.

Create the src/components/TeslaNotice directory, create a TeslaNotice.js file in it, and enter the following code:

import React from 'react';import './TeslaNotice.css';
const TeslaNotice = () => (  <div className="tesla-battery__notice">    <p>      The actual amount of range that you experience will vary based      on your particular use conditions. See how particular use conditions      may affect your range in our simulation model.    </p>    <p>      Vehicle range may vary depending on the vehicle configuration,      battery age and condition, driving style and operating, environmental      and climate conditions.    </p>  </div>)
export default TeslaNotice;

5.1 TeslaNotice Component Style

Next up, create src/components/TeslaNotice directory, create TeslaNotice.cssin it and add these styles to your TeslaNotice.css file:

.tesla-battery__notice {    margin: 20px 0;    font-size: 15px;    color: #666;    line-height: 20px;}

5.2 Import TeslaNotice component in TeslaBattery Container

Next, import TeslaNotice component in TeslaBattery.js:

...import TeslaNotice from '../components/TeslaNotice/TeslaNotice';
class TeslaBattery extends React.Component {  render() {    return (      <form className="tesla-battery">        <h1>Range Per Charge</h1>        <TeslaNotice />      </form>    )  }}...
We will continue in such a way that components are created in this pattern and imported from the TeslaBattery container.

6. TeslaCar Component

Now let’s render a nice Tesla car image with wheel animation.

Create the src/components/TeslaCar directory, create a TeslaCar.js file in it, and inside your TeslaCar.js file :

import React from 'react';import './TeslaCar.css';
const TeslaCar = (props) => (  <div className="tesla-car">    <div className="tesla-wheels">      <div className={`tesla-wheel tesla-wheel--front tesla-wheel--${props.wheelsize}`}></div>      <div className={`tesla-wheel tesla-wheel--rear tesla-wheel--${props.wheelsize}`}></div>    </div>  </div>);
TeslaCar.propTypes = {  wheelsize: React.PropTypes.number}
export default TeslaCar;

Here we specify propTypes using the React built-in typechecking. In development mode, React checks props passed to the component. (Only in development mode for performance reasons)

For each props attribute, React attempts to find it in the component’s propType object to determine whether (1) prop is expected (2) prop is the correct type. In this case, the TeslaCar component expects the props attribute wheelsize and specifies that it is a number type. If the wrong value is provided, a warning appears in the JavaScript console, which is useful for fixing potential bugs in early stage.

More information on React.PropTypes can be found here
Update: New Deprecation Warnings in React 15.5
In 15.5, instead of accessing PropTypes from the main React object, install the prop-typespackage and import them from there:

https://facebook.github.io/react/blog/2017/04/07/react-v15.5.0.html#migrating-from-react.proptypes

// Before (15.4 and below) import React from 'react';
import React from 'react';import './TeslaCar.css';
.........................
TeslaCar.propTypes = {  wheelsize: React.PropTypes.number}
export default TeslaCar;
// After (15.5) import React from 'react'; import PropTypes from 'prop-types';import './TeslaCar.css';
...........................
TeslaCar.propTypes = {   wheelsize: PropTypes.number} export default TeslaCar;

6.1 TeslaCar Component Style

Next, create a TeslaCar.css file in the src/components/TeslaCar directory and give it the following style. Since the code is long and omitted here, let’s check the source code.

.tesla-car {  width: 100%;  min-height: 350px;  background: #fff url(../../assets/tesla.jpg) no-repeat top center;  background-size: contain; }
.tesla-wheels {  height: 247px;  width: 555px;  position: relative;  margin: 0 auto; }
...

This gives us our animations and the component base for the car, which is displayed as background images.

6.2 Import TeslaCar component in TeslaBattery Container

Next, we need to add this component to our container again. Import TeslaNotice component in TeslaBattery.js:

...import TeslaCar from '../components/TeslaCar/TeslaCar';
class TeslaBattery extends React.Component {  render() {    return (      <form className="tesla-battery">        <h1>Range Per Charge</h1>        <TeslaCar />        <TeslaNotice />      </form>    )  }}...

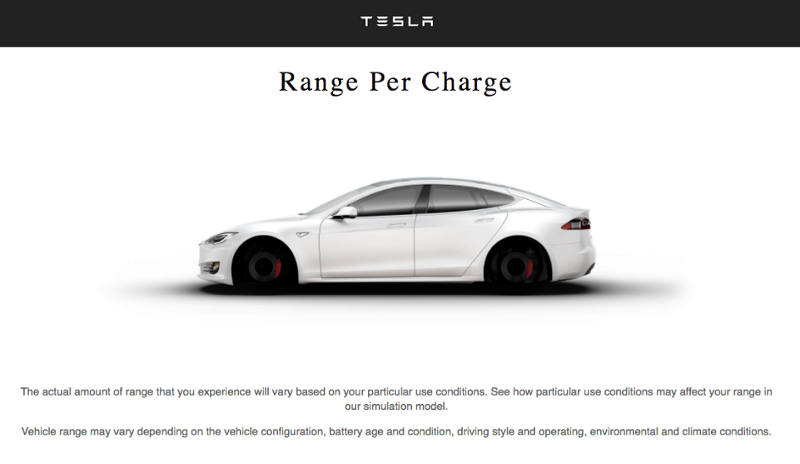

Here’s what you should be seeing:

7. Props and React Developer Tools

Wow! It’s nice but something is missing. The wheels are not shown. Let’s look for the cause. According to the source code, TeslaCar should be passed to props and class name changed based on props.wheelsize.

In other words, you need to receive some data (in this case, wheelsize) from the parent component and render it properly, and there must be a communication method that can receive the data.

React is composed of a component tree, which consists of a container for delivering data and state, and a component for passively receiving data and state from a container. The tool that delivers this state to the subcomponents is a single object, props.

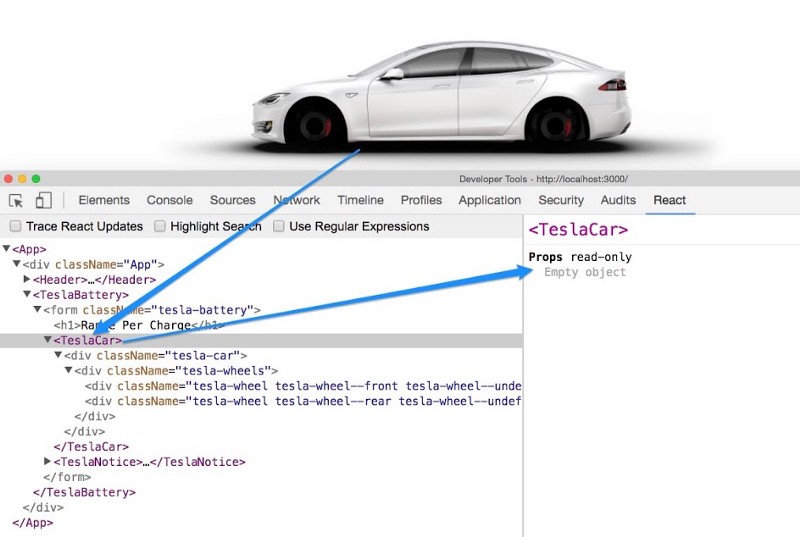

You can easily understand this by checking the component tree using React Developer Tools in Chrome.

props is a JavaScript single object, in this case an empty object. This is because we did not pass props in the parent component TeslaBattery.

8. State of Application

We need to think about what state is required to be managed in our app. If you look at the final app GIF image at the top of this article, the state values ​​are:

  • carstats (object array) : An array of battery numerical value objects ​​by car model according to the currently selected condition value (speed, temperature, climate, wheel)
  • config (object): Currently selected conditions object (speed: 55, temperature: 20, climate: aricon on, wheel: 19)

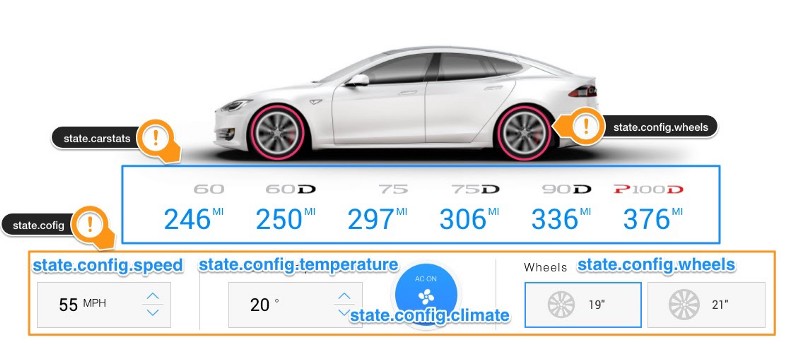

state of application

That is the single source of truth for our app. Now we will add the constructor method to the TeslaBattery container and set the initial value so that we can manage this state value and pass it to the subcomponent. The TeslaCar component accepts the wheelsize input through props and renders the Tesla car image and spins the wheels.

Both the parent component and the child component do not know whether a particular component is stateful or stateless and do not care whether it is defined as a function or a class. This is why the state is often called local or encapsulated. This state can not be accessed by components other than the component that owns and sets the state. So this state value can be passed to the sub-component as props. This is commonly referred to as a “top-down” or “unidirectional” data flow. Every state is always owned by a particular component, and any data or UI derived from that state only affects the “downward” component of the tree.
...class TeslaBattery extends React.Component {  constructor(props) {    super(props);
    this.state = {      carstats: [],      config: {        speed: 55,        temperature: 20,        climate: true,        wheels: 19      }    }  }    render() {    // ES6 Object destructuring Syntax,    // takes out required values and create references to them    const { config } = this.state;    return (      <form className="tesla-battery">        <h1>Range Per Charge</h1>        <TeslaCar wheelsize={config.wheels}/>        <TeslaNotice />      </form>    )  }}...

In render(), the code in the form const {a, b} = c is ES6 Object Destructuring. It takes the required value out of the object and makes a reference to it.

Conceptually, the React component is like a JavaScript function and receives an arbitrary input called ‘props’ and returns a React element that describes what should be shown.

In a word, this concept can be expressed by the following formula.

fn(d) = V

A function that receives data as input and returns a view.

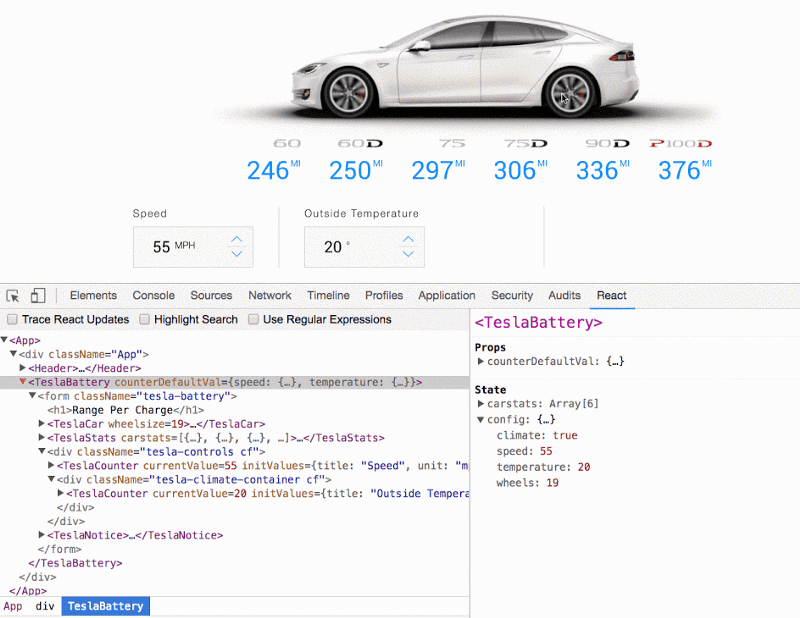

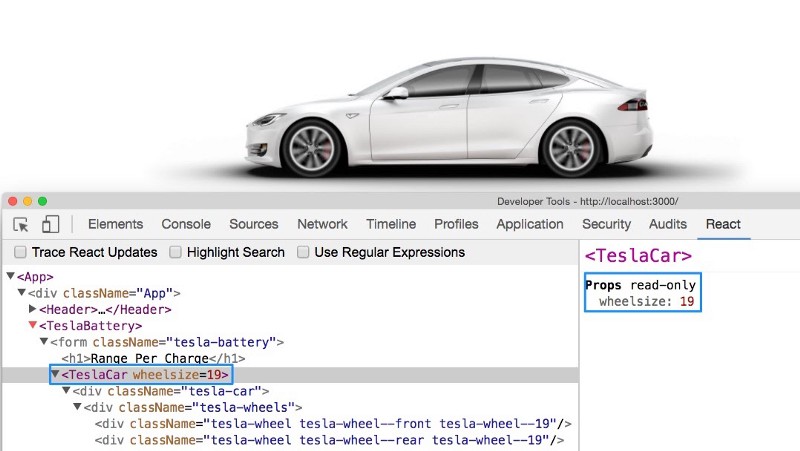

If you save files, you can see that the rendered Tesla car and wheel animation work well on the updated screen. You can also see that props is passed well in the component tree.

TeslaCar props
Some functions are called “pure” in the sense that they always return the same output value if they have the same input value without changing the input value. (Pure function) One important React strict rule here is that all React components should behave like pure functions with respect to props. props must be read-only.

9. TeslaStats Component

Now we are going to build the TeslaStats component. Create the src/components/TeslaStats directory, create a TeslaStats.js file in it, and enter the following code:

import React from 'react';import './TeslaStats.css';
const TeslaStats = (props) => {  const listItems = props.carstats.map((stat) => (    <li key={stat.model}>      <div className={`tesla-stats-icon tesla-stats-icon--${stat.model.toLowerCase()}`}></div>      <p>{stat.miles}</p>    </li>  ));  return (    <div className="tesla-stats">    &lt;ul>      {listItems}      </ul>  </div>  )};
TeslaStats.propTypes = {  carstats: React.PropTypes.array}
export default TeslaStats;

TeslaStats is also a presentational component that receives state, and it takes a list of arrays containing model values ​​by props and renders them.

First, let’s consider how to transform a list in JavaScript. The following code uses the map() function to take a numbers array and return a double value.

This code prints [2, 4, 6, 8, 10] to the console.

const numbers = [1, 2, 3, 4, 5];const doubled = numbers.map((number) => number * 2);console.log(doubled);

Converting an array to a list in React is almost identical. Here we use the JavaScript map function to iterate through the props.carstats array.

For each iteration, it returns a <li> element containing the model and a <li>element surrounding the <p&gt; tag containing miles.

Finally, it returns the listItems array in the <ul> element.

9.1 TeslaStats Component Style

Next, create a TeslaStats.css file in the src/components/TeslaStats directory and type the following style. Since the code is long and omitted here, let’s check the source code

....tesla-stats {  margin: -70px 0 30px; }.tesla-stats ul {  text-align: center; }...

The task that this component performs is to iterate through the props.carstatsarray and bind a particular class to an element based on stat.model. You can then replace the background image to display the Tesla model.

9.2 Import TeslaStats component in TeslaBattery Container

Then add following import to use the TeslaStats component in TeslaBattery.js.

...import TeslaStats from '../components/TeslaStats/TeslaStats';...render() {  const { config, carstats } = this.state;  return (    <form className="tesla-battery">      <h1>Range Per Charge</h1>      <TeslaCar wheelsize={config.wheels}/>      <TeslaStats carstats={carstats}/>      <TeslaNotice />    </form>  )}...

We need to pass the carstats array to props, so let’s set the value using BatteryService we’ve already implemented.

9.3 CalculateStats and setState

Add import getModelData first.

After the component is mounted via componentDidMount(), it calls the statsUpdate() function. When calculateStats() function that receives carModels and the current state value as the input is executed, the object with the matching model and miles values ​​is returned, and the return value is passed through the setState() and then state object is updated.

...import { getModelData } from '../services/BatteryService';...
calculateStats = (models, value) => {  const dataModels = getModelData();  return models.map(model => {    // ES6 Object destructuring Syntax,    // takes out required values and create references to them    const { speed, temperature, climate, wheels } = value;    const miles = dataModels[model][wheels][climate ? 'on' : 'off'].speed[speed][temperature];    return {      model,      miles    };  });}  statsUpdate() {  const carModels = ['60', '60D', '75', '75D', '90D', 'P100D'];  // Fetch model info from BatteryService and calculate then update state  this.setState({    carstats: this.calculateStats(carModels, this.state.config)  })  }  componentDidMount() {  this.statsUpdate(); }...

One caveat is that explicit binding in the TeslaBattery constructor function is required to access this in the class.

...this.calculateStats = this.calculateStats.bind(this);this.statsUpdate = this.statsUpdate.bind(this);...

9.4 Add Additional Style

Additional styling is required for a nice layout here.

First open the src/index.css file and delete all existing code and add the following:

@font-face {  font-family: 'RobotoNormal';  src: url('./assets/fonts/Roboto-Regular-webfont.eot');  src: url('./assets/fonts/Roboto-Regular-webfont.eot?#iefix') format('embedded-opentype'),       url('./assets/fonts/Roboto-Regular-webfont.woff') format('woff'),       url('./assets/fonts/Roboto-Regular-webfont.ttf') format('truetype'),       url('./assets/fonts/Roboto-Regular-webfont.svg#RobotoRegular') format('svg');  font-weight: normal;  font-style: normal;}
*, *:before, *:after {  box-sizing: border-box;  margin: 0;  padding: 0;  font: 300 14px/1.4 'Helvetica Neue', Helvetica, Arial, sans-serif;  -webkit-font-smoothing: antialiased;}
.cf:before,.cf:after {    content: '';    display: table;}.cf:after {    clear: both;}.cf {  *zoom: 1;}

Next, open the src/App.css file and delete all existing code and add the following:

.wrapper {  margin: 100px 0 150px;}

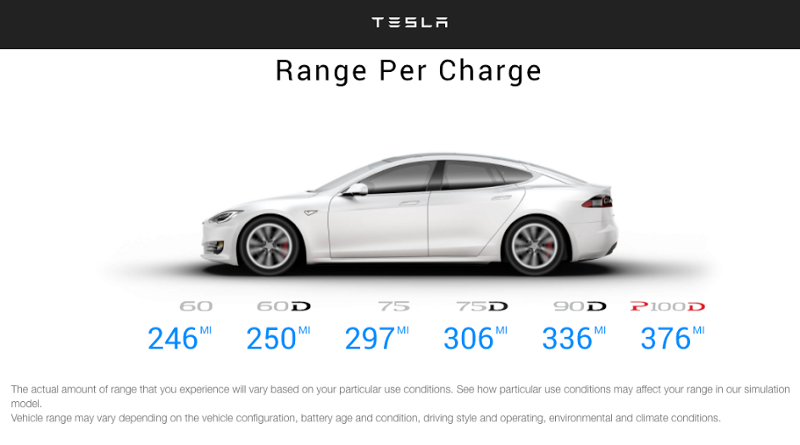

The work result screen so far is as follows.

10. Reusable TeslaCounter Component

Tesla’s speed and external temperature controls should be reusable components, so I’ll make them a generic Counter component that allows for other metadata such as step, minimum, maximum, and title and units (mph / degrees).

Also, unlike the components we have created so far, we need an action to change the state value in response to user input (button click, checkbox selection, etc.). Let’s look at how to handle events that occur in a subcomponent.

Create the src/components/TeslaCounter directory as before, create a TeslaCounter.js file in it, and enter the following code:

import React from 'react';import './TeslaCounter.css';
const TeslaCounter = (props) => (  <div className="tesla-counter">    <p className="tesla-counter__title">{props.initValues.title}</p>    <div className="tesla-counter__container cf">      <div className="tesla-counter__item">        <p className="tesla-counter__number">          { props.currentValue }          <span>{ props.initValues.unit }</span>        </p>        <div className="tesla-counter__controls">          <button             onClick={(e) => props.increment(e, props.initValues.title)}             disabled={props.currentValue >= props.initValues.max}           >          </button>          <button             onClick={(e) => props.decrement(e, props.initValues.title)}             disabled={props.currentValue <= props.initValues.min}           >          </button>        </div>      </div>    </div>  </div>  );
TeslaCounter.propTypes = {  currentValue: React.PropTypes.number,  increment: React.PropTypes.func,  decrement: React.PropTypes.func,  initValues: React.PropTypes.object}
export default TeslaCounter;

Let’s think about what we want here. Each time you click and change the speed and temperature, you must update the state so that the value is reflected between the maximum and minimum values.

Since the component only needs to update its own state, TeslaBattery passes the callback (increment, decrement) to the TeslaCounter each time it needs to update its state. You can use the onClick event on a button to notify the event. The callback passed by TeslaBattery calls setState() and the app is updated.

We will implement a callback that will be passed by TeslaBattery in a few moments.

10.1 TeslaCounter Component Style

Let’s implement the style first. Create a TeslaCounter.css file in the src/components/TeslaCounter directory and specify the following styles. Since the code is long and omitted here, let’s check the source code

.tesla-counter {  float: left;  width: 230px; }.tesla-counter__title {  letter-spacing: 2px;  font-size: 16px; }...

10.2 Import TeslaCounter Component in TeslaBattery Container

Now, we will implement callback in TeslaBattery and pass it to the TeslaCounter component.

First, add import to use the TeslaCounter component in TeslaBattery.js.

We also implement the callback functions increment() and decrement(), and the internal function updateCounterState() and bind it in the constructor. Then pass the callback function to the TeslaCounter component with props.

...constructor(props) {    super(props);
    this.calculateStats = this.calculateStats.bind(this);    this.statsUpdate = this.statsUpdate.bind(this);    this.increment = this.increment.bind(this);    this.decrement = this.decrement.bind(this);    this.updateCounterState = this.updateCounterState.bind(this);
    this.state = {      carstats: [],      config: {        speed: 55,        temperature: 20,        climate: true,        wheels: 19      }    }  }...updateCounterState(title, newValue) {    const config = { ...this.state.config };    // update config state with new value    title === 'Speed' ? config['speed'] = newValue : config['temperature'] = newValue;    // update our state    this.setState({ config });  }
  increment(e, title) {    e.preventDefault();    let currentValue, maxValue, step;    const { speed, temperature } = this.props.counterDefaultVal;    if (title === 'Speed') {      currentValue = this.state.config.speed;      maxValue = speed.max;      step = speed.step;    } else {      currentValue = this.state.config.temperature;      maxValue = temperature.max;      step = temperature.step;    }
    if (currentValue < maxValue) {      const newValue = currentValue + step;      this.updateCounterState(title, newValue);    }  }
  decrement(e, title) {    e.preventDefault();    let currentValue, minValue, step;    const { speed, temperature } = this.props.counterDefaultVal;    if (title === 'Speed') {      currentValue = this.state.config.speed;      minValue = speed.min;      step = speed.step;    } else {      currentValue = this.state.config.temperature;      minValue = temperature.min;      step = temperature.step;    }
    if (currentValue > minValue) {      const newValue = currentValue - step;      this.updateCounterState(title, newValue);    }  }  ...render() {		return (      <form className="tesla-battery">        <h1>Range Per Charge</h1>        <TeslaCar wheelsize={config.wheels} />        <TeslaStats carstats={carstats} />        <div className="tesla-controls cf">          <TeslaCounter            currentValue={this.state.config.speed}            initValues={this.props.counterDefaultVal.speed}            increment={this.increment}            decrement={this.decrement}          />          <div className="tesla-climate-container cf">            <TeslaCounter              currentValue={this.state.config.temperature}              initValues={this.props.counterDefaultVal.temperature}              increment={this.increment}              decrement={this.decrement}            />          </div>        </div>        <TeslaNotice />    </form>  )}

10.3 TeslaBattery Container Style

An additional style is required for TeslaBattery as soon as the TeslaCounter component is added. Open the TeslaBattery.css file and add the following:

.tesla-climate-container {  float: left;  width: 420px;  padding: 0 40px;  margin: 0 40px 0 0;  border-left: 1px solid #ccc;  border-right: 1px solid #ccc;}.tesla-controls {  display: block;  width: 100%;}

10.4 Default Value Props

Here, initValues passed to TeslaCounter is a constant value and is passed from App which is a parent component of TeslaBattery.

Open App.js and pass the counterDefaultVal object to the TeslaBattery component as follows:

import React, { Component } from 'react';import './App.css';import Header from './components/Header/Header';import TeslaBattery from './containers/TeslaBattery';
const counterDefaultVal = {  speed: {    title: "Speed",    unit: "mph",    step: 5,    min: 45,    max: 70  },  temperature: {    title: "Outside Temperature",    unit: "°",    step: 10,    min: -10,    max: 40  }};
class App extends Component {  render() {    return (      <div className="App">        <Header />        <TeslaBattery counterDefaultVal={counterDefaultVal}/>      &lt;/div>    );  }}
export default App;

Now, when you click Speed ​​and Temperature, you can see that the changed values ​​are updated and re-rendered in the state object through the React Developer Tool.

10.5 Virtual DOM

What a single-page application can give us is a seamless user experience and smooth interaction.

In our app, car model values ​​are updated without having to reload the entire page every time the user changes speed or temperature. Even if you need to connect to the server to get the data. To provide this user experience, you need to know which part of the DOM you need to update when changes or interactions occur.

Each JavaScript framework uses a different strategy: Ember uses data-binding, Angular1 uses dirty checking, and React uses Virtual DOM.

In React, the first time the component’s rendering method is called, it prints a virtual DOM model, rather than the actual DOM element itself. The virtual DOM is a JavaScript data structure that represents the appearance of DOM. React then takes this model and creates the actual DOM element.

Then, whenever the component’s state changes (eg, setState is called), the rendering method of the component is called and a new virtual DOM is created, and this new virtual DOM is compared with the previous virtual DOM. The result of this comparison is to show the actual DOM changes and the DOM will be ‘patched’ with the changes and the screen will change.

The car model information does not change yet as the speed and temperature change. This will eventually be implemented later.

11. Aircon and Heating Controls

We monitor the temperature and change the heating to aircon when it is more than 20 degrees, and heating when it is below 20 degrees.

First create a directory src/components/TeslaClimate, create a TeslaClimate.jsfile in it, and enter the following code:

import React from 'react';import './TeslaClimate.css';
const TeslaClimate = (props) => (  <div className="tesla-climate">    <label      className={`tesla-climate__item ${props.value ? 'tesla-climate__item--active' : '' }  ${!props.limit ? 'tesla-heat':''}`}    >      <p>{props.limit ? 'ac' : 'heat'} {props.value ? 'on' : 'off'}</p>      <i className="tesla-climate__icon"></i>      <input        type="checkbox"        name="climate"        checked={props.value}        onChange={() => {props.handleChangeClimate()}}      />    </label>  </div>);
TeslaClimate.propTypes = {  value: React.PropTypes.bool,  limit: React.PropTypes.bool,  handleChangeClimate: React.PropTypes.func}
export default TeslaClimate;

This component changes the style class according to the props.value passed in, and changes the text according to props.limit.

TeslaBattery passes callback(handleChangeClimate in this case) to TeslaClimate, which is executed whenever the state needs to be updated. onChangeevent can be used to notify the event. The callback passed by TeslaBattery is called with setState() to update its state and re-render.

11.1 TeslaClimate Component Style

Create a TeslaClimate.css file in the src/components/TeslaClimate directory and specify the following styles. Since the code is long and omitted here, let’s check the source code.

.tesla-climate {	  float: left;   }  .tesla-climate__item {    cursor: pointer;    display: block;    width: 100px;    height: 100px;    border: 6px solid #f7f7f7;    border-radius: 50%;    box-shadow: 0px 1px 3px rgba(0, 0, 0, 0.3);    color: #666;    background: #fff;   }  ...

11.2 Import TeslaClimate Component in TeslaBattery Container

Now we will implement callback in TeslaBattery and pass it to the TeslaClimatecomponent.

First, add import to use the TeslaClimate component in TeslaBattery.js. We implement callback function handleChangeClimate() and bind it in constructor(). Then pass the callback function to the TeslaClimate component as props.

...import TeslaClimate from '../components/TeslaClimate/TeslaClimate';...constructor(props) {  super(props);  ...  this.handleChangeClimate = this.handleChangeClimate.bind(this);  ...}// handle aircon & heating click event handlerhandleChangeClimate() {  const config = {...this.state.config};  config['climate'] = !this.state.config.climate;  this.setState({ config });}
...<TeslaClimate  value={this.state.config.climate}  limit={this.state.config.temperature > 10}  handleChangeClimate={this.handleChangeClimate}/&gt;  ...

Now the state value changes according to the temperature change, and when the changed value is passed to the TeslaClimate component, the style class and text are changed according to the value.

12. TeslaWheels Component

Finally, let’s make the final component TeslaWheels. As always, create a directory src/components/TeslaWheels, create a TeslaWheels file in it, and enter the following code.

import React from 'react';import './TeslaWheels.css';
const LabelLists = (props) => {  const value = props.wheels.value;  const changeHandler = props.wheels.handleChangeWheels;  const sizes = [19, 21];  const LabelItems = sizes.map(size => (    <label key={size} className={`tesla-wheels__item tesla-wheels__item--${size} ${value === size ? 'tesla-wheels__item--active' : '' }`}>      <input        type="radio"        name="wheelsize"        value={size}        checked={value === size}         onChange={() => {changeHandler(size)}} />      <p>        {size}"      </p>    </label>     )  );  return (    <div>      {LabelItems}    </div>  );}const TeslaWheels = (props) => (  <div className="tesla-wheels__component">    <p className="tesla-wheels__title">Wheels</p>    <div className="tesla-wheels__container cf">      <LabelLists wheels={props}/>    </div>  </div>);TeslaWheels.propTypes = {  value: React.PropTypes.number,  handleChangeWheels: React.PropTypes.func}export default TeslaWheels;

Our implementation here is similar to the conversion of the props array object to a list in the TeslaStats component. Repeat the props.sizes array using the javascript map() function.

For each iteration, it returns the <label> elements containing size. Finally, the LabelItems list is built into the TeslaWheels component and rendered.

In the <label> element, the effect of wheel animation is shown by changing the class according to the transmitted wheel size.

12.1 TeslaWheels Component Style

Create a TeslaWheels.css file in the src/components/TeslaWheels directory and specify the following styles. Since the code is long and omitted here, let’s check the source code.

.tesla-wheels__component {  float: left;  width: 355px;}.tesla-wheels__title {  letter-spacing: 2px;  font-size: 16px;}...

12.2 Import TeslaWheels Component in TeslaBattery Container

Finally, implement callback in TeslaBattery and pass it to the TeslaWheels component.

Add import to use the TeslaWheels component in TeslaBattery.js. We then implement callback function handleChangeWheels() and bind it in constructor. Then pass the callback function to the TeslaWheels component as props.

...import TeslaWheels from '../components/TeslaWheels';...constructor(props) {    super(props);    this.calculateStats = this.calculateStats.bind(this);    this.increment = this.increment.bind(this);    this.decrement = this.decrement.bind(this);    this.handleChangeClimate = this.handleChangeClimate.bind(this);    this.handleChangeWheels = this.handleChangeWheels.bind(this);    this.statsUpdate = this.statsUpdate.bind(this);...handleChangeWheels(size) {  const config = {...this.state.config};  config['wheels'] = size;  this.setState({ config });}...<TeslaWheels  value={this.state.config.wheels}  handleChangeWheels={this.handleChangeWheels}/&gt;...

The result of the completion of the wheels animation is as follows.

13. State Update

Are we finally done? Even if the user changes several condition values, the difference value of the vehicle model does not change properly.

So far, we’ve only updated a part of our app’s status each time an event occurs.

this.setState({ config });

Now let’s change the carstats state whenever the config state value changes.

statsUpdate() {  const carModels = ['60', '60D', '75', '75D', '90D', 'P100D'];  // Fetch model info from BatteryService and calculate then update state  this.setState({  carstats: this.calculateStats(carModels, this.state.config)  })}

Now we create a function that take the carModels and the current state value as inputs and reflects the changed carStats in the app state and pass it to this.setState as a callback.

By doing this, it is possible to update the config object first in setState(), which operates asynchronous method, and to render the changed stats on the screen based on this.

this.setState({ config }, () => {this.statsUpdate()});

This completes all the puzzles. The complete code for TeslaBattery is:

import React from 'react';import './TeslaBattery.css';import TeslaNotice from '../components/TeslaNotice/TeslaNotice';import TeslaCar from '../components/TeslaCar/TeslaCar';import TeslaStats from '../components/TeslaStats/TeslaStats';import TeslaCounter from '../components/TeslaCounter/TeslaCounter';import TeslaClimate from '../components/TeslaClimate/TeslaClimate';import TeslaWheels from '../components/TeslaWheels/TeslaWheels';import { getModelData } from '../services/BatteryService';
class TeslaBattery extends React.Component {  constructor(props) {    super(props);
    this.calculateStats = this.calculateStats.bind(this);    this.statsUpdate = this.statsUpdate.bind(this);    this.increment = this.increment.bind(this);    this.decrement = this.decrement.bind(this);    this.updateCounterState = this.updateCounterState.bind(this);    this.handleChangeClimate = this.handleChangeClimate.bind(this);    this.handleChangeWheels = this.handleChangeWheels.bind(this);
    this.state = {      carstats: [],      config: {        speed: 55,        temperature: 20,        climate: true,        wheels: 19      }    }  }
  calculateStats = (models, value) => {    const dataModels = getModelData();    return models.map(model => {      const { speed, temperature, climate, wheels } = value;      const miles = dataModels[model][wheels][climate ? 'on' : 'off'].speed[speed][temperature];      return {        model,        miles      };    });  }
  statsUpdate() {    const carModels = ['60', '60D', '75', '75D', '90D', 'P100D'];    // Fetch model info from BatteryService and calculate then update state    this.setState({      carstats: this.calculateStats(carModels, this.state.config)    })  }
  componentDidMount() {    this.statsUpdate();  }
  updateCounterState(title, newValue) {    const config = { ...this.state.config };    // update config state with new value    title === 'Speed' ? config['speed'] = newValue : config['temperature'] = newValue;    // update our state    this.setState({ config }, () => {this.statsUpdate()});  }
  increment(e, title) {    e.preventDefault();    let currentValue, maxValue, step;    const { speed, temperature } = this.props.counterDefaultVal;    if (title === 'Speed') {      currentValue = this.state.config.speed;      maxValue = speed.max;      step = speed.step;    } else {      currentValue = this.state.config.temperature;      maxValue = temperature.max;      step = temperature.step;    }
    if (currentValue < maxValue) {      const newValue = currentValue + step;      this.updateCounterState(title, newValue);    }  }
  decrement(e, title) {    e.preventDefault();    let currentValue, minValue, step;    const { speed, temperature } = this.props.counterDefaultVal;    if (title === 'Speed') {      currentValue = this.state.config.speed;      minValue = speed.min;      step = speed.step;    } else {      currentValue = this.state.config.temperature;      minValue = temperature.min;      step = temperature.step;    }
    if (currentValue > minValue) {      const newValue = currentValue - step;      this.updateCounterState(title, newValue);    }  }
  // handle aircon & heating click event handler  handleChangeClimate() {    const config = {...this.state.config};    config['climate'] = !this.state.config.climate;    this.setState({ config }, () => {this.statsUpdate()});  }
  // handle Wheels click event handler  handleChangeWheels(size) {    const config = {...this.state.config};    config['wheels'] = size;    this.setState({ config }, () => {this.statsUpdate()});  }
  render() {        const { config, carstats } = this.state;    return (      <form className="tesla-battery">        <h1>Range Per Charge</h1>        <TeslaCar wheelsize={config.wheels} />        <TeslaStats carstats={carstats} />        <div className="tesla-controls cf">          <TeslaCounter            currentValue={this.state.config.speed}            initValues={this.props.counterDefaultVal.speed}            increment={this.increment}            decrement={this.decrement}          />          <div className="tesla-climate-container cf">            <TeslaCounter              currentValue={this.state.config.temperature}              initValues={this.props.counterDefaultVal.temperature}              increment={this.increment}              decrement={this.decrement}            />            <TeslaClimate              value={this.state.config.climate}              limit={this.state.config.temperature > 10}              handleChangeClimate={this.handleChangeClimate}            />          </div>          <TeslaWheels            value={this.state.config.wheels}            handleChangeWheels={this.handleChangeWheels}          />        </div>        <TeslaNotice />      </form>    )  }}
export default TeslaBattery;
Check out final project code

14. Build

It’s time to build our app.

npm run build

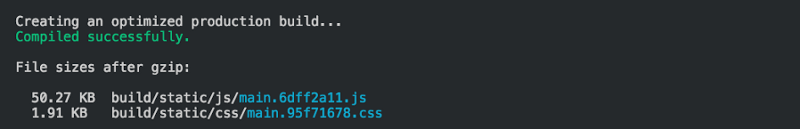

If the build succeeds, the build folder will be created in our project directory and the following message will be displayed.

Now our build is ready to be deployed.

15. Deploy

With tools like Surge, we can really easily deploy our built app.

Surge is simple, single-command web publishing. It publishes HTML, CSS, and JS for free, without leaving the command line.

First, install the tool with npm and run the surge command in the build directory.

$ npm install -global surge$ cd build$ surge

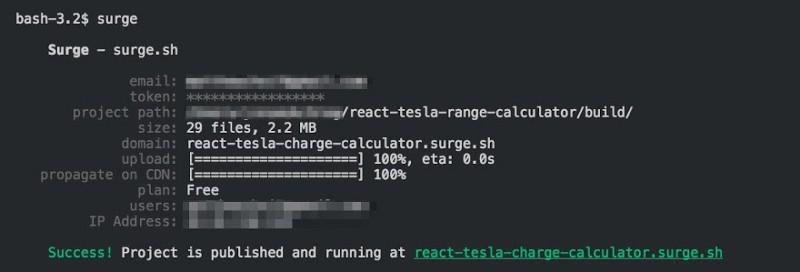

If this is your first time running, you will need to enter your email and password to register a new account.

The deployment is finished in an instant.

Let’s connect to our deployed project.

react-tesla-charge-calculator.surge.sh

Conclusion

In this post, we learned some points of creating React components and composing them to create a front-end app through rebuilding Tesla's Battery Range Calculator. If you’ve followed along until now, then congratulations on getting a React app up and running.

In the next installment, we’ll explore how to improve our state management with the Redux library. In the meantime, if you have any comments, suggestions, or corrections, please feel free to post them in the comments section.

Thanks for your feedback in advance.
