Introduction

In this article we are going to create a web application using ASP.NET Core MVC with the help of Visual Studio Code and ADO.NET. We will be creating a sample Employee Record Management System and performing CRUD operations on it.

We will use VS Code and SQL Server for our demo.

Prerequisites

  • Install .NET Core 2.0.0 or above SDK from here
  • Download and install Visual Studio Code from here
  • SQL Server 2008 or above

Source Code

Before proceeding further, I would recommend that you download the source code from GitHub.

Creating the Table and Stored Procedures

We will be using a DB table to store all the records of the employees.

Open SQL Server and use the following script to create tblEmployee table.

Create table tblEmployee(            EmployeeId int IDENTITY(1,1) NOT NULL,            Name varchar(20) NOT NULL,            City varchar(20) NOT NULL,            Department varchar(20) NOT NULL,            Gender varchar(6) NOT NULL        )

Now, we will create stored procedures to add, delete, update, and get employee data.

To Insert an Employee Record

Create procedure spAddEmployee         (            @Name VARCHAR(20),             @City VARCHAR(20),            @Department VARCHAR(20),            @Gender VARCHAR(6)        )        as         Begin             Insert into tblEmployee (Name,City,Department, Gender)             Values (@Name,@City,@Department, @Gender)         End

To Update an Employee Record

Create procedure spUpdateEmployee          (             @EmpId INTEGER ,           @Name VARCHAR(20),            @City VARCHAR(20),           @Department VARCHAR(20),           @Gender VARCHAR(6)        )          as          begin             Update tblEmployee              set [email protected],             [email protected],             [email protected],           [email protected]             where [email protected]          End

To Delete an Employee Record

Create procedure spDeleteEmployee         (             @EmpId int          )          as           begin             Delete from tblEmployee where [email protected]          End

To View all Employee Records

Create procedure spGetAllEmployees      as      Begin          select *          from tblEmployee       order by EmployeeId End

Now, our Database part has been completed. So we will proceed to create the MVC application using Visual Studio code.

Create the MVC Web Application

We will be creating a source project from the terminal window in Visual Studio Code. Open VS code and navigate to view >> Integrated Terminal.

This will open the terminal window as shown in the image below.

Type the following sequence of commands in the terminal window. It will create our MVC application “MvcAdoDemo”.

  • mkdir MvcAdoDemo
  • cd MvcAdoDemo
  • dotnet new mvc

Now open this “MvcAdoDemo” project file using VS code. If it prompts the message “Required assets to build and debug are missing from MvcAdoDemo. Add them?”, select “Yes”.

You can observe in the solution explorer that we already have folders created with the names Controllers, Models, and Views. We will be adding our code files in these folders only.

Adding the Model to the Application

Right click on Models folder and select “New File”. Name it Employee.cs. It will create a file inside the Models folder.

Add one more file to the Models folder. Name it EmployeeDataAccessLayer.cs. This class will contain our Database-related operations.

Open Employee.cs and put following code inside it. Since we are adding the required validators to the fields of Employee class, we need to use System.ComponentModel.DataAnnotations at the top:

using System;    using System.Collections.Generic;    using System.ComponentModel.DataAnnotations;    using System.Linq;    using System.Threading.Tasks;        namespace MVCAdoDemo.Models    {        public class Employee        {            public int ID { get; set; }            [Required]            public string Name { get; set; }            [Required]            public string Gender { get; set; }            [Required]            public string Department { get; set; }            [Required]            public string City { get; set; }        }    }

Open EmployeeDataAccessLayer.cs and put in the following code to handle database operations. Make sure to put in your own connection string.

using System;    using System.Collections.Generic;    using System.Data;    using System.Data.SqlClient;    using System.Linq;    using System.Threading.Tasks;        namespace MVCAdoDemo.Models    {        public class EmployeeDataAccessLayer        {            string connectionString = "Your Connection String here";                //To View all employees details              public IEnumerable<Employee> GetAllEmployees()            {                List<Employee> lstemployee = new List<Employee>();                    using (SqlConnection con = new SqlConnection(connectionString))                {                    SqlCommand cmd = new SqlCommand("spGetAllEmployees", con);                    cmd.CommandType = CommandType.StoredProcedure;                        con.Open();                    SqlDataReader rdr = cmd.ExecuteReader();                        while (rdr.Read())                    {                        Employee employee = new Employee();                            employee.ID = Convert.ToInt32(rdr["EmployeeID"]);                        employee.Name = rdr["Name"].ToString();                        employee.Gender = rdr["Gender"].ToString();                        employee.Department = rdr["Department"].ToString();                        employee.City = rdr["City"].ToString();                            lstemployee.Add(employee);                    }                    con.Close();                }                return lstemployee;            }                //To Add new employee record              public void AddEmployee(Employee employee)            {                using (SqlConnection con = new SqlConnection(connectionString))                {                    SqlCommand cmd = new SqlCommand("spAddEmployee", con);                    cmd.CommandType = CommandType.StoredProcedure;                        cmd.Parameters.AddWithValue("@Name", employee.Name);                    cmd.Parameters.AddWithValue("@Gender", employee.Gender);                    cmd.Parameters.AddWithValue("@Department", employee.Department);                    cmd.Parameters.AddWithValue("@City", employee.City);                        con.Open();                    cmd.ExecuteNonQuery();                    con.Close();                }            }                //To Update the records of a particluar employee            public void UpdateEmployee(Employee employee)            {                using (SqlConnection con = new SqlConnection(connectionString))                {                    SqlCommand cmd = new SqlCommand("spUpdateEmployee", con);                    cmd.CommandType = CommandType.StoredProcedure;                        cmd.Parameters.AddWithValue("@EmpId", employee.ID);                    cmd.Parameters.AddWithValue("@Name", employee.Name);                    cmd.Parameters.AddWithValue("@Gender", employee.Gender);                    cmd.Parameters.AddWithValue("@Department", employee.Department);                    cmd.Parameters.AddWithValue("@City", employee.City);                        con.Open();                    cmd.ExecuteNonQuery();                    con.Close();                }            }                //Get the details of a particular employee            public Employee GetEmployeeData(int? id)            {                Employee employee = new Employee();                    using (SqlConnection con = new SqlConnection(connectionString))                {                    string sqlQuery = "SELECT * FROM tblEmployee WHERE EmployeeID= " + id;                    SqlCommand cmd = new SqlCommand(sqlQuery, con);                        con.Open();                    SqlDataReader rdr = cmd.ExecuteReader();                        while (rdr.Read())                    {                        employee.ID = Convert.ToInt32(rdr["EmployeeID"]);                        employee.Name = rdr["Name"].ToString();                        employee.Gender = rdr["Gender"].ToString();                        employee.Department = rdr["Department"].ToString();                        employee.City = rdr["City"].ToString();                    }                }                return employee;            }                //To Delete the record on a particular employee            public void DeleteEmployee(int? id)            {                    using (SqlConnection con = new SqlConnection(connectionString))                {                    SqlCommand cmd = new SqlCommand("spDeleteEmployee", con);                    cmd.CommandType = CommandType.StoredProcedure;                        cmd.Parameters.AddWithValue("@EmpId", id);                        con.Open();                    cmd.ExecuteNonQuery();                    con.Close();                }            }        }    }

To use ADO.NET functionalities in VS code, we need to add the nuget package reference to System.Data.SqlClient. Open the MvcAdoDemo.csproj file and put the following code into it.

<PackageReference Include="System.Data.SqlClient" Version="4.4.0" />

Put this code in the location highlighted in the image below.

Adding the Controller to the Application

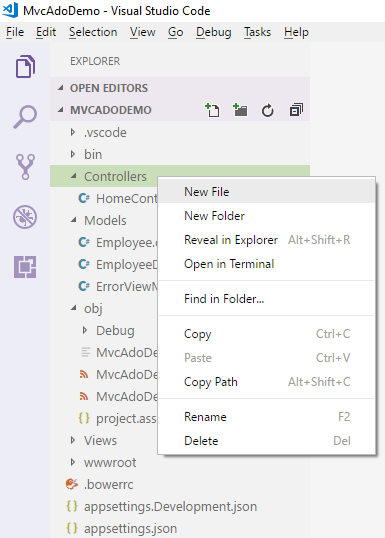

Right click on the Controllers folder and select “New File”. Name it EmployeeController.cs. It will create a new file inside the Controllers folder.

Now our EmployeeController has been created. We will put all our business logic in this controller.

Adding Views to the Application

To add views for our controller class, we need to create a folder inside the Views folder with the same name as our controller and then add our views to that folder.

Right-click on the Views folder, and select “New Folder” and name the folder Employee.

To add view files, right click on the Employee folder inside the Views folder and select “New File”. Name it Index.cshtml. This will create a view file inside Employee folder. Thus, we have created our first view. Similarly add 4 more views in the Views/Employee folder: Create.cshtml, Delete.cshtml, Details.cshtml, and andEdit.cshtml.

Now our Views folder will look like this:

Since all our Views have been created, we will put some code in View and Controller for performing CRUD operations.

Index View

This view will display all the employee records present in the database. Additionally, we will also provide the action methods Edit, Details, and Delete on each record.

Open Index.cshtml and put the following code in it.

@model IEnumerable<MVCAdoDemo.Models.Employee>           @{            ViewData["Title"] = "Index";        }    <h2>Index</h2>    <p>        <a asp-action="Create">Create New</a>    </p>    <table class="table">        <thead>            <tr>                <th>                    @Html.DisplayNameFor(model => model.Name)                </th>                <th>                    @Html.DisplayNameFor(model => model.Gender)                </th>                <th>                    @Html.DisplayNameFor(model => model.Department)                </th>                <th>                    @Html.DisplayNameFor(model => model.City)                </th>                <th></th>            </tr>        </thead>        <tbody>            @foreach (var item in Model)    {                <tr>                    <td>                        @Html.DisplayFor(modelItem => item.Name)                    </td>                    <td>                        @Html.DisplayFor(modelItem => item.Gender)                    </td>                    <td>                        @Html.DisplayFor(modelItem => item.Department)                    </td>                    <td>                        @Html.DisplayFor(modelItem => item.City)                    </td>                    <td>                        <a asp-action="Edit" asp-route-id="@item.ID">Edit</a> |                        <a asp-action="Details" asp-route-id="@item.ID">Details</a> |                        <a asp-action="Delete" asp-route-id="@item.ID">Delete</a>                    </td>                </tr>            }        </tbody>    </table>

Open your EmployeeController.cs file. You’ll see that it is empty. Put the following code into it.

using System;  using System.Collections.Generic;  using System.Diagnostics;  using System.Linq;  using System.Threading.Tasks;  using Microsoft.AspNetCore.Mvc;  using MVCAdoDemo.Models;    namespace MVCAdoDemo.Controllers  {      public class EmployeeController : Controller      {          EmployeeDataAccessLayer objemployee = new EmployeeDataAccessLayer();            public IActionResult Index()          {              List<Employee> lstEmployee = new List<Employee>();              lstEmployee = objemployee.GetAllEmployees().ToList();                return View(lstEmployee);          }       }  }

To handle database operations, we have created an object of EmployeeDataAccessLayer class inside the EmployeeController class.

Create View

This view will be used to Add new employee data to the database.

Open Create.cshtml and put the following code into it.

@model MVCAdoDemo.Models.Employee        @{        ViewData["Title"] = "Create";    }    <h2>Create</h2>    <h4>Employees</h4>    <hr />    <div class="row">        <div class="col-md-4">            <form asp-action="Create">                <div asp-validation-summary="ModelOnly" class="text-danger"></div>                <div class="form-group">                    <label asp-for="Name" class="control-label"></label>                    <input asp-for="Name" class="form-control" />                    <span asp-validation-for="Name" class="text-danger"></span>                </div>                <div class="form-group">                    <label asp-for="Gender" class="control-label"></label>                    <select asp-for="Gender" class="form-control">                        <option value="">-- Select Gender --</option>                        <option value="Male">Male</option>                        <option value="Female">Female</option>                    </select>                    <span asp-validation-for="Gender" class="text-danger"></span>                </div>                <div class="form-group">                    <label asp-for="Department" class="control-label"></label>                    <input asp-for="Department" class="form-control" />                    <span asp-validation-for="Department" class="text-danger"></span>                </div>                <div class="form-group">                    <label asp-for="City" class="control-label"></label>                    <input asp-for="City" class="form-control" />                    <span asp-validation-for="City" class="text-danger"></span>                </div>                <div class="form-group">                    <input type="submit" value="Create" class="btn btn-default" />                </div>            </form>        </div>    </div>    <div>        <a asp-action="Index">Back to List</a>    </div>    @section Scripts {        @{await Html.RenderPartialAsync("_ValidationScriptsPartial");}    }

To handle the business logic of create, open EmployeeController.cs and put the following code into it.

[HttpGet]  public IActionResult Create()  {      return View();  }    [HttpPost]  [ValidateAntiForgeryToken]  public IActionResult Create([Bind] Employee employee)  {      if (ModelState.IsValid)      {          objemployee.AddEmployee(employee);          return RedirectToAction("Index");      }      return View(employee);  }

The [Bind] attribute is used with parameter “employee” to protect against over-posting. To learn more about over-posting, visit this link.

Edit View

This view will enable us to edit an existing employee’s data.

Open Edit.cshtml and put the following code into it.

@model MVCAdoDemo.Models.Employee        @{        ViewData["Title"] = "Edit";    }    <h2>Edit</h2>    <h4>Employees</h4>    <hr />    <div class="row">        <div class="col-md-4">            <form asp-action="Edit">                <div asp-validation-summary="ModelOnly" class="text-danger"></div>                <input type="hidden" asp-for="ID" />                <div class="form-group">                    <label asp-for="Name" class="control-label"></label>                    <input asp-for="Name" class="form-control" />                    <span asp-validation-for="Name" class="text-danger"></span>                </div>                <div class="form-group">                    <label asp-for="Gender" class="control-label"></label>                    <select asp-for="Gender" class="form-control">                        <option value="">-- Select Gender --</option>                        <option value="Male">Male</option>                        <option value="Female">Female</option>                    </select>                    <span asp-validation-for="Gender" class="text-danger"></span>                </div>                <div class="form-group">                    <label asp-for="Department" class="control-label"></label>                    <input asp-for="Department" class="form-control" />                    <span asp-validation-for="Department" class="text-danger"></span>                </div>                <div class="form-group">                    <label asp-for="City" class="control-label"></label>                    <input asp-for="City" class="form-control" />                    <span asp-validation-for="City" class="text-danger"></span>                </div>                            <div class="form-group">                    <input type="submit" value="Save" class="btn btn-default" />                </div>            </form>        </div>    </div>    <div>        <a asp-action="Index">Back to List</a>    </div>    @section Scripts {        @{await Html.RenderPartialAsync("_ValidationScriptsPartial");}    }

To handle the business logic of the Edit view, open EmployeeController.cs and add the following code to it.

[HttpGet]  public IActionResult Edit(int? id)  {      if (id == null)      {          return NotFound();      }      Employee employee = objemployee.GetEmployeeData(id);        if (employee == null)      {          return NotFound();      }      return View(employee);  }    [HttpPost]  [ValidateAntiForgeryToken]  public IActionResult Edit(int id, [Bind]Employee employee)  {      if (id != employee.ID)      {          return NotFound();      }      if (ModelState.IsValid)      {          objemployee.UpdateEmployee(employee);          return RedirectToAction("Index");      }      return View(employee);  }

You’ll see that we have two Edit action methods: one for HttpGet and another for HttpPost.The HttpGet Edit action method fetches the employee data and populates the fields of edit view. Once the user clicks on the Save button after editing the record, a Post request will be generated which is handled by the HttpPost Edit action method.

Details View

This view will display the details of a particular employee.

Open Details.cshtml and put the following code into it.

@model MVCAdoDemo.Models.Employee        @{        ViewData["Title"] = "Details";    }    <h2>Details</h2>    <div>        <h4>Employees</h4>        <hr />        <dl class="dl-horizontal">            <dt>                @Html.DisplayNameFor(model => model.Name)            </dt>            <dd>                @Html.DisplayFor(model => model.Name)            </dd>            <dt>                @Html.DisplayNameFor(model => model.Gender)            </dt>            <dd>                @Html.DisplayFor(model => model.Gender)            </dd>            <dt>                @Html.DisplayNameFor(model => model.Department)            </dt>            <dd>                @Html.DisplayFor(model => model.Department)            </dd>            <dt>                @Html.DisplayNameFor(model => model.City)            </dt>            <dd>                @Html.DisplayFor(model => model.City)            </dd>        </dl>    </div>    <div>        <a asp-action="Edit" asp-route-id="@Model.ID">Edit</a> |        <a asp-action="Index">Back to List</a>    </div>

To handle the business logic of the Details view, open EmployeeController.cs and add the following code to it.

[HttpGet]  public IActionResult Details(int? id)  {      if (id == null)      {          return NotFound();      }      Employee employee = objemployee.GetEmployeeData(id);        if (employee == null)      {          return NotFound();      }      return View(employee);  }

Delete View

This view will help us to remove employee data.

Open Delete.cshtml and put the following code into it.

@model MVCAdoDemo.Models.Employee        @{        ViewData["Title"] = "Delete";    }    <h2>Delete</h2>    <h3>Are you sure you want to delete this?</h3>    <div>        <h4>Employees</h4>        <hr />        <dl class="dl-horizontal">            <dt>                @Html.DisplayNameFor(model => model.Name)            </dt>            <dd>                @Html.DisplayFor(model => model.Name)            </dd>            <dt>                @Html.DisplayNameFor(model => model.Gender)            </dt>            <dd>                @Html.DisplayFor(model => model.Gender)            </dd>            <dt>                @Html.DisplayNameFor(model => model.Department)            </dt>            <dd>                @Html.DisplayFor(model => model.Department)            </dd>            <dt>                @Html.DisplayNameFor(model => model.City)            </dt>            <dd>                @Html.DisplayFor(model => model.City)            </dd>        </dl>            <form asp-action="Delete">            <input type="hidden" asp-for="ID" />            <input type="submit" value="Delete" class="btn btn-default" /> |            <a asp-action="Index">Back to List</a>        </form>    </div>

To handle the business logic of the Delete view, open EmployeeController.cs and add the following code to it.

[HttpGet]  public IActionResult Delete(int? id)  {      if (id == null)      {          return NotFound();      }      Employee employee = objemployee.GetEmployeeData(id);        if (employee == null)      {          return NotFound();      }      return View(employee);  }    [HttpPost, ActionName("Delete")]  [ValidateAntiForgeryToken]  public IActionResult DeleteConfirmed(int? id)  {      objemployee.DeleteEmployee(id);      return RedirectToAction("Index");  }

To complete the Delete operation, we need two Delete methods that accept the same parameter (Employee Id). But two methods with same name and method signature will create a compile time error. And if we rename the Delete method, then routing won’t be able to find it, as asp.net maps URL segments to action methods by name.

So, to resolve this issue, we add the ActionName(“Delete”) attribute to the DeleteConfirmed method. This attribute performs mapping for the routing system so that a URL that includes /Delete/ for a POST request will find the DeleteConfirmed method.

When we click on the Delete link on the Index page, it will send a Get request and return a View of the employee using the HttpGet Delete method. When we click on the Delete button on this view, it will send a Post request to delete the record which is handled by the HttpPost DeleteConfirmed method.

Performing a delete operation in response to a Get request (or, for that matter, performing an edit operation, create operation, or any other operation that changes data) opens up a security hole. Therefore, we have two separate methods.

Configure the route URL

Before launching the application, we will configure the route URLs. Open the Startup.cs file to set the format for routing. Scroll down to the app.UseMvc method, where you can set the route URL.

Make sure that your route URL is set like this:

app.UseMvc(routes =>   {       routes.MapRoute(           name: "default",           template: "{controller=Home}/{action=Index}/{id?}");   });

This URL pattern sets HomeController as the default controller and Index method as the default action method (whereas the Id parameter is optional). Default and optional route parameters need not be present in the URL path for a match.

If we do not append any controller name in the URL, then it will take HomeController as the default controller and the Index method of HomeController as the default action method. Similarly, if we append only the Controller name in the URL, it will navigate to the Index action method of that controller.

Execution Demo

Now press F5 to launch the application and navigate to the Employee controller by appending /Employee to the URL.

You can see the page as shown below.

Click on CreateNew to navigate to the Create view. Add a new Employee record as shown in the image below.

If we miss the data in any field while creating the employee record, we will get a required field validation error message.

After inserting the data in all the fields, click on the “Create” button. The new employee record will be created and you will be redirected to the Index view, which displays records of all the employees. Here, we can also see the action methods Edit, Details, and Delete.

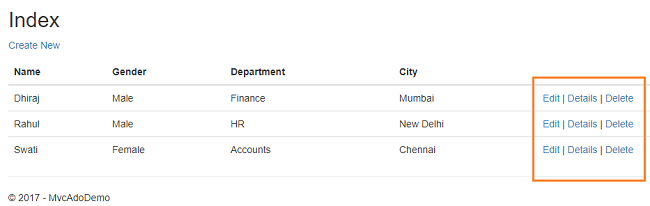

If we want to edit an existing employee record, then click the Edit action link. It will open the Edit View as below where we can change the employee’s data.

Here we have changed the City of employee Dhiraj from Mumbai to New Delhi. Click on “Save” to return to the Index view to see the updated changes as highlighted in the image below.

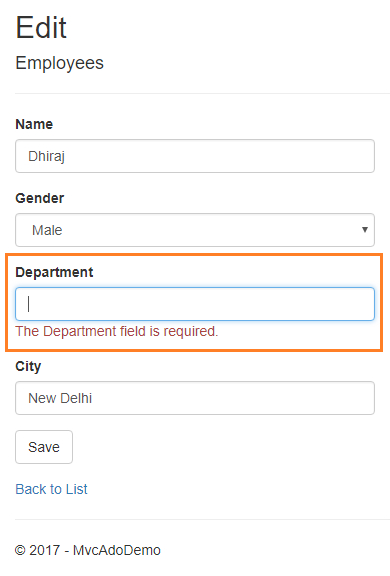

If we miss any fields while editing the employee’s record, then the Edit view will also throw the required field validation error message.

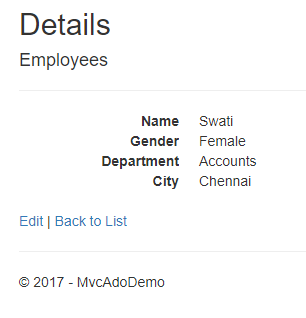

If you want to see the details of any Employee, then click on the Details action link, which will open the Details view, as shown in the image below.

Click on “Back to List” to go back to Index view. Now, we will perform a Delete operation on an employee named Rahul. Click on the Delete action link which will open the Delete view asking for a confirmation to delete.

Once we click on the Delete button, it will send an HttpPost request to delete the employee’s record, and we will be redirected to the Index view. Here, we can see that the employee with the name Rahul has been removed from our record.

Conclusion

We have learned about creating a sample MVC web application using ASP.Net Core 2.0, ADO.NET, and a SQL server with the help of Visual Studio Code.

Download the source code from GitHub and play around to get a better understanding.

You can check my other articles on ASP .NET Core here

Preparing for interviews? Read my article on C# Coding Questions For Technical Interviews.
