by Mattia Astorino

How to load web fonts to avoid performance issues and speed up page loading

Custom web fonts are used everywhere around the world, but many (oh so many) sites load them improperly. This causes a lot of problems for page loading like performance issues, slow loading time, blocked rendering and swapped fonts during navigation.

I see many developers ignoring these issues or perhaps making the same errors over and over just because “they have always done so”, but as web developers we need to be able to adapt in a constantly changing environment.

It’s time to break this loop and start doing the right thing in 2019. There are just four steps to consider when loading a custom web font:

  • Use the correct font format
  • Preload fonts
  • Use the correct font-face declaration
  • Avoid invisible text during font loading.

Let’s break down these points one at a time.

Use the correct font format

There are many font formats that can be used on the web, but only two formats are really needed if you don’t have to support Internet Explorer (IE) 8 or lower: woff and woff2. These are the only two file types you should use because they are compressed in the gzip format by default (so they are very small), are optimised for the web, and are fully supported by IE 9+ and all other evergreen browsers.

Preload fonts

When using custom fonts you should tell the browser to preload them using the appropriate rel="" tag and attributes:

<link rel="preload" as="font" href="/fonts/custom-font.woff2" type="font/woff2" crossorigin="anonymous">
<link rel="preload" as="font" href="/fonts/custom-font.woff" type="font/woff2" crossorigin="anonymous">

Note that the use of crossorigin here is important; without this attribute, the preloaded font is ignored by the browser, and a new fetch takes place. This is because fonts are expected to be fetched anonymously by the browser, and the preload request is only made anonymous by using the this attribute.

In the above example, the rel="preload" as="font" attributes will ask the browser to start downloading the required resource as soon as possible. They also tell the browser that this is a font, so it can appropriately prioritise it in its resource queue. Using the preload hints will have a dramatic impact on web font performance and initial page load. Browsers that support preload and prefetch hints will start downloading web fonts as soon as they have seen the hint in the HTML file and no longer need to wait for the CSS.

You can instead use the rel="prefetch" attribute to tell the browser to prepare the download of the resources that may be required later during page load or user actions so it will assign a low priority to those resources.

CAUTION:
If you’re using a CDN like Google Fonts, be sure that the font files you’re preloading match the ones in the CSS. Fonts can also be regularly updated, and if you’re preloading an old version while using the CSS for a newer one, you may end up downloading two versions of the same font and wasting your users’ bandwidth. Consider using <link rel="preconnect">👨🏼‍🔬 instead for easier maintenance.

Correct font-face declaration

Declaring a font-face family is very simple but we must take care with certain things when we do it. Here a correct example declaring a custom font family:

@font-face {  font-family: 'Custom Font';  font-weight: 400;  font-style: normal;  font-display: swap; /* Read next point */  unicode-range: U+000-5FF; /* Download only latin glyphs */  src: local('Custom Font'),       url('/fonts/custom-font.woff2') format('woff2'),        url('/fonts/custom-font.woff') format('woff');}

Here’s the Unicode range from Google Web Fundamentals.

As you can see we use only optimised fonts (woff and woff2) and we tell the browser to load only the required glyphs range (from U+000 to U+5FF), but this property doesn’t prevent browsers to download the entire font. There are also two more things to note, the local() function and the font declaration order.

The local() function allows users to use their local copy of the font if present (e.g. think about the Roboto fonts that are pre-installed on Android) instead of downloading it.

The font declaration order is also important because the browser will start fetching the resources by following the declaration order. If it supports the woff2 format it will download the font, or if it doesn’t recognise the resource format it will proceed to the next one, and so on.

If you really want to use eot and ttf fonts make sure to add them at the end of the src declaration.

Resources

Avoid invisible text during font loading

Fonts are often large files that take a while to load even when gzipped. To deal with this, some browsers hide text until the font loads (the “flash of invisible text”). You can avoid the “flash” and show content to users immediately using a system font initially, then replacing it.

In the previous @font-face example you’ll notice the font-displaydeclaration. The swap value tells the browser that text using this font should be displayed immediately using a system font. Once the custom font is ready, the system font is swapped out.

If a browser does not support font-display it continues to follow its default behaviour for loading fonts.

Browser default behaviours if a font is not ready:

Edge uses a system font until the custom font is ready, then swaps out fonts.

Chrome will hide text for up to 3 seconds. If text is still not ready, it will use a system font until the custom font is ready.

Firefox will hide text for up to 3 seconds. If text is still not ready, it will use a system font until the custom font is ready.

Safari hides text until the custom font is ready.

Testing

The following links test the “standard version” against the optimised one:

Results

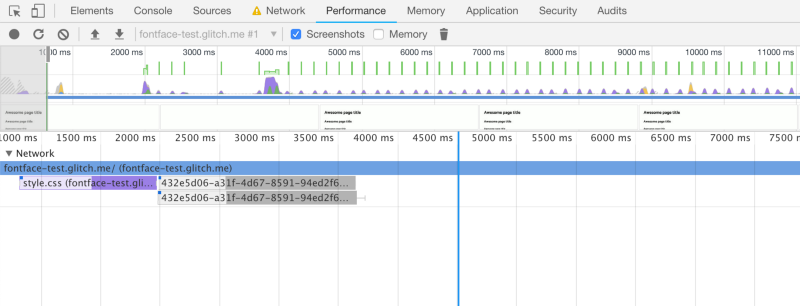

Default

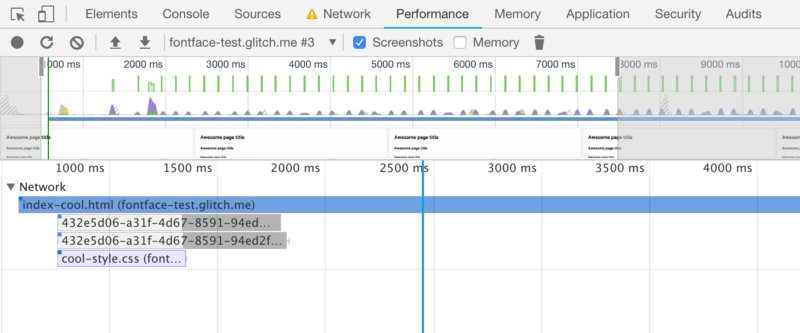

Optimised behaviour

Conclusion

Considering such basic optimisations will improve the general UX of your digital product. We must account for situations where the connection speed is not optimal or when people don’t have time to wait several seconds while your app/site is being completely loaded and navigable.

Such improvements, especially for large projects, are mandatory for improving overall user experience, and they really don’t require a lot of effort.

We must work together in trying to fix the web.
