Learn by doing: a nice and easy intro to the Inter Planetary File System

0B3eYNwEEIi5xR23JKLjlV4uByMKFOEuex5z

Primer on IPFS

IPFS is short for Inter Planetary File System. It is a peer-to-peer, distributed file system to make the web faster, safer, and more open. To shift from the present version of the web to a distributed version of the web, we need the IPFS. Essentially, the aim is to replace HTTP.

There are NO centralised servers. Everything is decentralised. Let’s see how this works by doing it.

I wrote an article about how IPFS uses MerkleDAG, which can be found here.

STEP 1: Install IPFS

IPFS alpha version is written in GoLang. You’ll need to download it for your platform from this link.

To check that you’ve successfully installed IPFS, open the command console and enter the following command.

$ ipfs help

If you see something which starts like this:

USAGE
ipfs - Global p2p merkle-dag filesystem.
ipfs [--config=<config> | -c] [--debug=<debug> | -D] [--help=<help>] [-h=<h>] [--local=<local> | -L] [--api=<api>] <command> ...

Then you’re good to go!

yDjQnIwZUm2seDD83k1bYg9Gd6yEK4Ak7fWQ

Step 2: Initialize IPFS Node

To initialize your local machine as an IPFS node, run the following command:

$ ipfs init

This command initializes IPFS configuration files and generates a new keypair using 2048 bit-RSA. This will produce your peer identity as an output.

You’ll see something like this:

initializing IPFS node at /Users/niharikasingh/.ipfs
generating 2048-bit RSA keypair...done
peer identity: QmTo1oMgGEH6Ym3H1xF55U7q4bexd5288YmEJjubDqVmKn
to get started, enter:
ipfs cat /ipfs/QmS4ustL54uo8FzR9455qaxZwuMiUhyvMcX9Ba8nUH4uVv/readme

You’ll have a different peer identity than mine.

Now run the following command to see the hello message:

$ ipfs cat /ipfs/QmS4ustL54uo8FzR9455qaxZwuMiUhyvMcX9Ba8nUH4uVv/readme

You’ll see a result that looks something like this:

Hello and Welcome to IPFS!
██╗██████╗ ███████╗███████╗
██║██╔══██╗██╔════╝██╔════╝
██║██████╔╝█████╗  ███████╗
██║██╔═══╝ ██╔══╝  ╚════██║
██║██║     ██║     ███████║
╚═╝╚═╝     ╚═╝     ╚══════╝
If you're seeing this, you have successfully installed
IPFS and are now interfacing with the ipfs merkledag!
-------------------------------------------------------
| Warning:                                              |
|   This is alpha software. Use at your own discretion! |
|   Much is missing or lacking polish. There are bugs.  |
|   Not yet secure. Read the security notes for more.   |
-------------------------------------------------------
Check out some of the other files in this directory:
./about
./help
./quick-start     <-- usage examples
./readme          <-- this file
./security-notes

Voilà!

Step 3: Add some files to IPFS

Create a demo folder anywhere on your machine and throw in a couple of files. Any type of files: images, videos, music…literally anything. You can even add another folder within this folder.

U1AAtYHLUIf2v6R6zKfdkx6ruHdul0tIQuuA

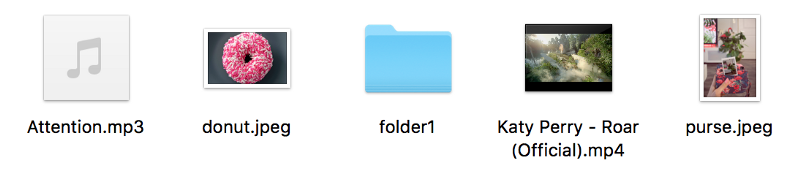

This is what my demo folder looks like.

Suppose the folder is named “test-ipfs”. So to push these files, first navigate into this folder on your command line and then run the following command:

$ ipfs add -r .

This command adds all files/directories present in the folder to IPFS recursively to create the IPFS MerkleDAG. You can even add a single file by using the following command: $ ipfs add <filename.extension>

This creates the following output:

added QmSTuTEThyESvDgmYdao2HK6kurXe2pqjA1KHPD8wSHVy7 test-ipfs/donut.jpeg
added QmSR9MJ5resQLjwqy7kEVVKJwTvDG53Npt9i1c6jZeZDtW test-ipfs/purse.jpeg
added QmUNLLsPACCz1vLxQVkXqqLX5R1X345qqfHbsf67hvA3Nn test-ipfs/folder1
added QmaKZ3dnc9ejBdGgEDCRtsLFNRxcY67HLjk6gXUnk9sdM9 test-ipfs

You’ll notice this long thing is the unique hash of that particular file. All the files and directories, as well as the parent folder, will have their unique hash.

$ ipfs ls QmaKZ3dnc9ejBdGgEDCRtsLFNRxcY67HLjk6gXUnk9sdM9

This works exactly like the UNIX file system. The expected output will show the following:

QmSTuTEThyESvDgmYdao2HK6kurXe2pqjA1KHPD8wSHVy7 219859 donut.jpeg
QmUNLLsPACCz1vLxQVkXqqLX5R1X345qqfHbsf67hvA3Nn 4      folder1/
QmSR9MJ5resQLjwqy7kEVVKJwTvDG53Npt9i1c6jZeZDtW 110254 purse.jpeg

The file size is shown at the end of the hash string. For example, 219859 is the file size of donut.jpeg.

Step 4: Access files online

To access files online, first we’ve got to connect our node to the IPFS network. To do that, we’ve got to run the IPFS daemon.

$ ipfs daemon

This will produce the following output:

Initializing daemon...
Successfully raised file descriptor limit to 2048.
Swarm listening on /ip4/127.0.0.1/tcp/4001
Swarm listening on /ip4/169.254.100.132/tcp/4001
Swarm listening on /ip4/192.168.1.3/tcp/4001
Swarm listening on /ip6/::1/tcp/4001
Swarm listening on /p2p-circuit/ipfs/QmTo1oMgGEH6Ym3H1xF55U7q4bexd5288YmEJjubDqVmKn
Swarm announcing /ip4/127.0.0.1/tcp/4001
Swarm announcing /ip4/169.254.100.132/tcp/4001
Swarm announcing /ip4/192.168.1.3/tcp/4001
Swarm announcing /ip6/::1/tcp/4001
API server listening on /ip4/127.0.0.1/tcp/5001
Gateway (readonly) server listening on /ip4/127.0.0.1/tcp/8080
Daemon is ready

Now that you’ve pushed the files to IPFS, let’s see how can you access them.

localhost:8080/ipfs/hashOfTheFileYouWantToOpen

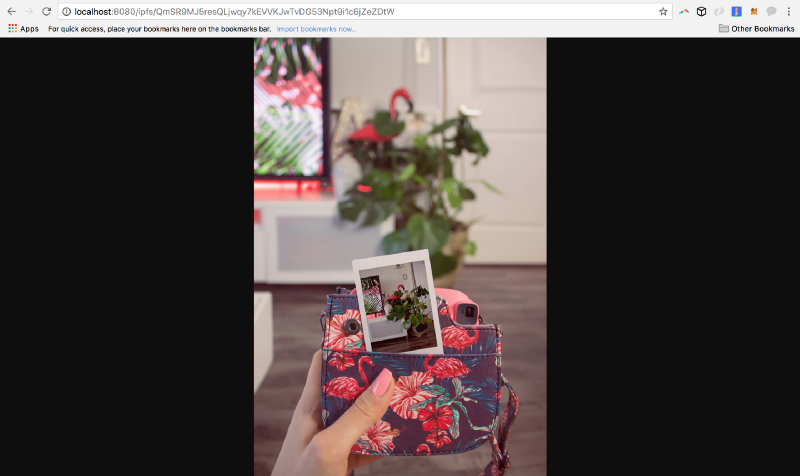

Suppose I wish to open purse.jpeg. I’ll copy the hash of purse.jpeg and hit the browser with the above syntax.

KadAfb5SZMNkJwsx-DuPTFqgTlWwCWQTLcNj

Likewise, you can even hear your music, video, and so on.

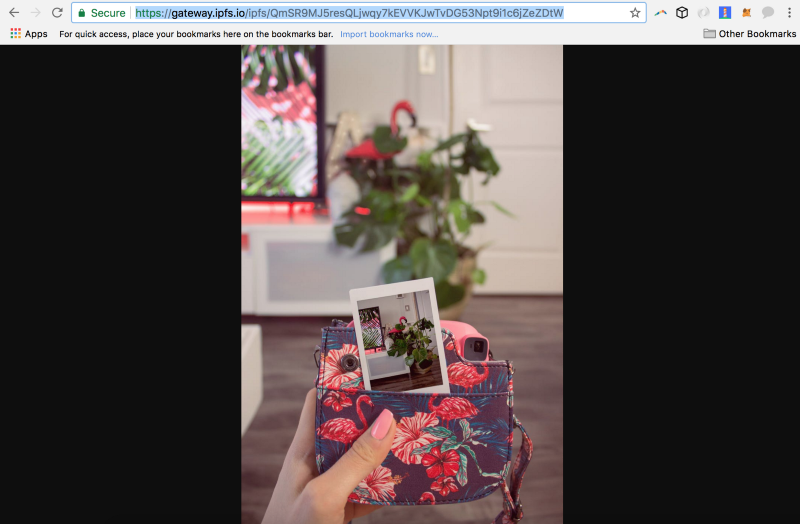

You can even access your content using the IPFS gateway:

gateway.ipfs.io/ipfs/hashOfTheFile
odk2-x4N9Ae1PD05hO9-695FG6dVTP9wTfuQ
GvoWuiYohw98UJYL9EHpEHFU367obEpLsg8Z

You’re about to see real magic now!

Point your browser to:

127.0.0.1:5001/webui

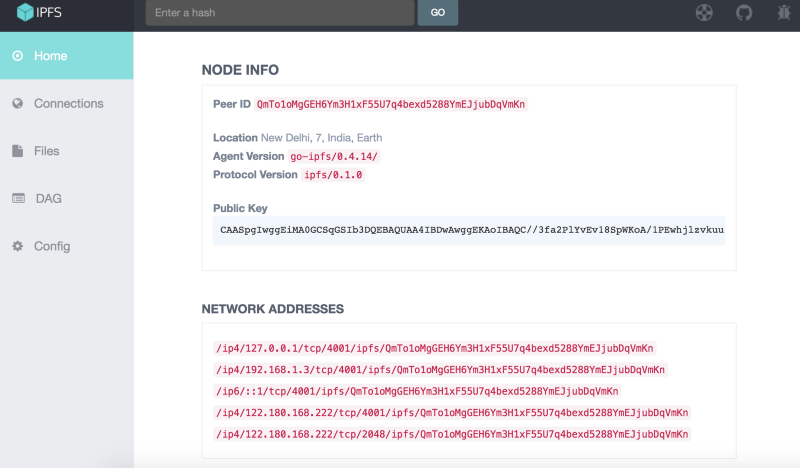

You’ll see this screen:

QCO1qZsohtn6LiKPOV3ombnRFCbf-2Sp1lqL

Feel free to play around.

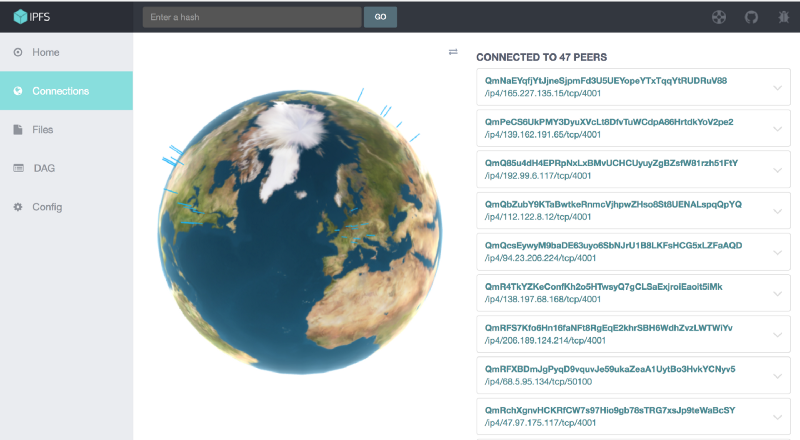

Connections: Will show you your peers all over the world.

9LrR9rpOaxqh2BAIk4Tm65Of5Hr3dOiWUH7r
How cool is that!

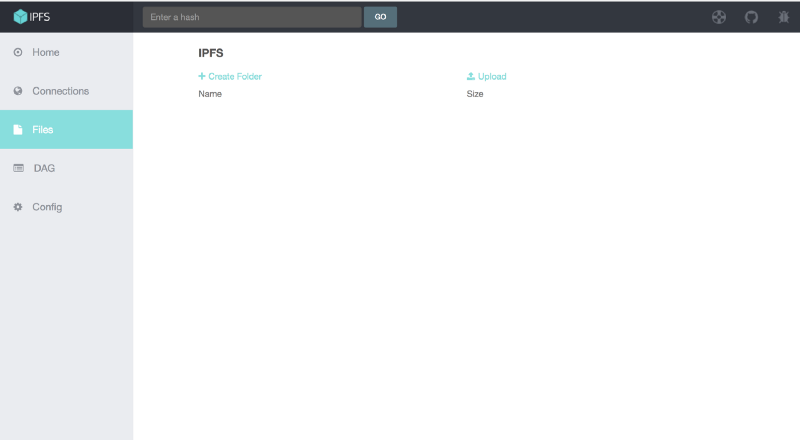

Files: You can push files using the webUI.

azl0Ef-ZLdXN5k9m-FK-ikvKAiUENjGgHY8Z

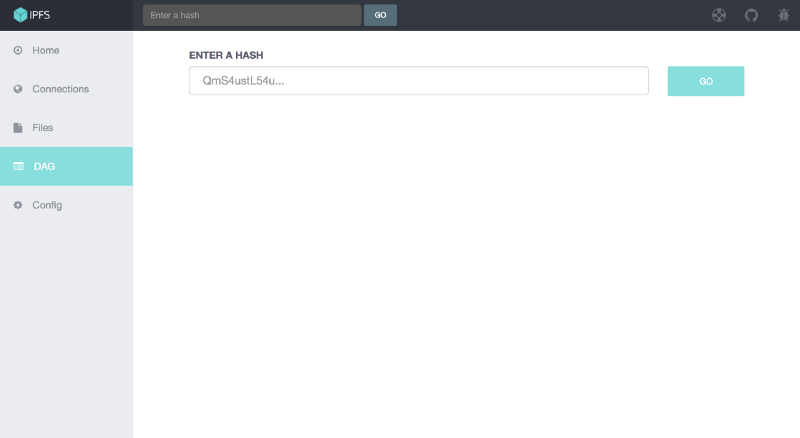

DAG: Will show you the MerkleDAG and show related info about the file when its hash is entered.

ZYgOHsZByxyGx5SnbCfL1AYJtuXaxX8SV28n

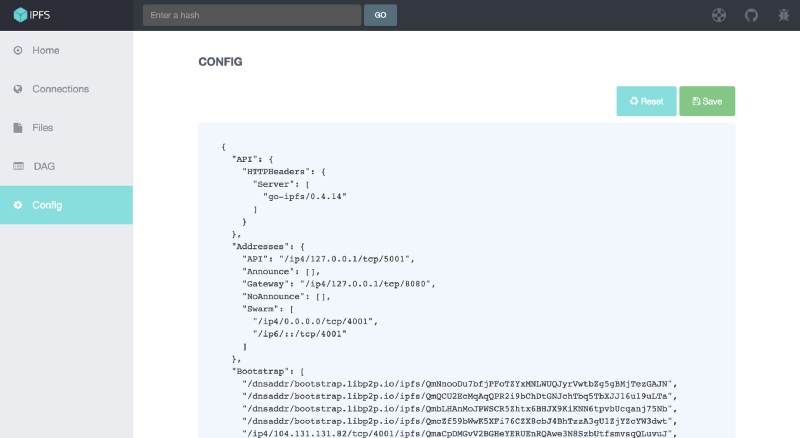

Config: This will show you configurations about your own machine.

zkgoHOaUu5GHtvWGHgxkKzPI459R3acpblV3

Step 5: Access files from your peers

IPFS promises that there is no central server that is giving you the files. So what if I tell you that you can stream video from my laptop also even if IPFS daemon isn’t running on my computer?

I’ve uploaded Katy Perry’s Roar video online. You can access it from me rather than hitting YouTube.

Go to:

localhost:8080/ipfs/QmWPCbXCK4NGXKac1QoKHdW7Qqud481T5FLHzu7RnSRDGR/

And enjoy!

You’ll be streaming this video on IPFS.

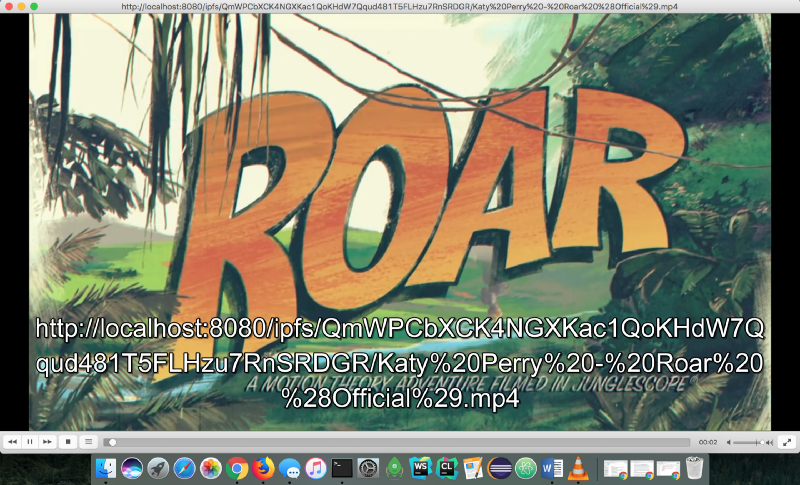

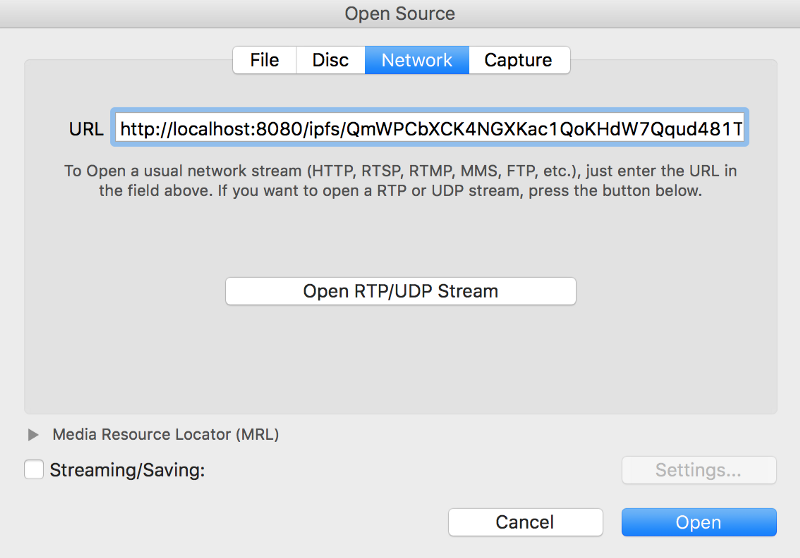

You can even use VLC Media Player for this.

URL used:

http://localhost:8080/ipfs/QmWPCbXCK4NGXKac1QoKHdW7Qqud481T5FLHzu7RnSRDGR/Katy%20Perry%20-%20Roar%20%28Official%29.mp4
5qSQK6IMz3JUD5gVYINaK7soOWmMxMPXVSwv
kZNXalAycR1zhatzYGMkZzWcViABcSRdN9f7

Feel free to play around with IPFS. This was a very brief overview. But I hope you got a basic idea about what IPFS is!
