How to run your own OpenVPN server on a Raspberry PI
In this short article I will explain how to setup your own VPN (Virtual Private Network) server on a Raspberry PI with OpenVPN. After we setup the server, we will setup an obfuscation server in order to disguise our traffic indicating that we’re using a VPN. This will help us evade some form of censorship.
Why use a VPN?
First, let’s talk about why you may want to use a VPN server:
- Avoid man in the middle attacks. If you have a malicious user on your local network — even your roommate — that person is able to monitor your unencrypted traffic and tamper with it.
- Hide your internet activity from your ISP (Internet Service Provider) or University, in my case.
- Unblock services. My University blocks all UDP (User Datagram Protocol) packets. This means that I cannot use any application that communicates via UDP. I can’t use my email client, play games, or even use Git!
I decided to setup a VPN on my home internet using a Raspberry Pi. This way I can connect to my home network while I’m at the University. If you need a VPN server in another country, you can buy a 5$/month virtual private server from DigitalOcean. You can use my referral link in order to get $10 off — that’s two months of free VPN. But you don’t have to use it if you don’t want to.
This step is really easy, because we will use a shell script to do it for you. So you just have to “press” next and finish.
The installation will take a long time, depending on the key-size you chose. On my Raspberry Pi 3 Model B, it took about 3 hours.
Please go this repository and then follow the instructions
OpenVPN-install - Set up your own OpenVPN server on Debian, Ubuntu, Fedora CentOS, and Arch Linuxgithub.com
If you don’t know the IP address of your server, just put
0.0.0.0 . I’ve chosen
443 for the port and TCP (Transmission Control Protocol) for the protocol.
Note: This is very important because my university only allows TCP/80 and TCP/443 ports, the rest are pretty much blocked. Also Obfsproxy only works with TCP, so make sure you chose TCP!
After the script has finished, you’ll get an .ovpn file. It can be imported in your favourite VPN client, and everything should work out of the box.
Testing the connection
Import the .ovpn file in your VPN client and change the ip
0.0.0.0 to the local ip of your Raspberry PI. Depending on your network configuration it may be of the form
Note: This will only work if you are connected to the same WiFi as the Pi is.
I’ve configured my router so the PI always gets a reserved IP address. You may have to check out your router settings if you want to do something similar.
If the connection is successful, congratulations, you now have a VPN server! But, you cannot access it from outside… yet.
If you only want an OpenVPN server without the obfuscation proxy, then you can skip to Port Forwarding.
Obfuscation Proxy Install
Obfs4 is a scrambling proxy. It disguises your internet traffic to look like noise. Somebody who snoops on your traffic won’t actually know what you’re doing, and it will protect you from active probing attacks which are used by the Great Firewall of China.
Note: This method won’t work if your adversary allows only whitelisted traffic :(
Let’s install the proxy server now.
0. Install the required package:
apt-get update && apt-get install obfs4proxy
- Create a directory that will hold the configuration.
sudo mkdir -p /var/lib/tor/pt_state/obfs4
2. Create the configuration file.
sudo nano /var/lib/tor/pt_state/obfs4/obfs4.config
In the configuration file, you will paste the following things:
TOR_PT_SERVER_BINDADDR is the address on which the proxy will listen for new connections. In my case it is it
0.0.0.0:444 — why 444 and not 443? Well, because I don’t want to change the OpenVPN server configuration which is currently listening on 443. Also, I will map this address later to 443 using Port Forwarding.
TOR_PT_ORPORT should point to the OpenVPN server. In my case, my server runs on
3. Create a SystemD service file.
sudo nano /etc/systemd/system/obfs4proxy.service
Then paste the following contents into it:
[Unit]Description=Obfsproxy Server[Service]EnvironmentFile=/var/lib/tor/pt_state/obfs4/obfs4.configExecStart=/usr/bin/obfs4proxy -enableLogging true -logLevelStr INFO[Install]WantedBy=multi-user.target
4. Start the Obfuscation proxy.
Now, make sure that OpenVPN is running and run the following commands in order to start the proxy and enable it to start on boot.
sudo systemctl start obfs4proxysudo systemctl enable obfs4proxy
5. Save the cert KEY
After the service has started, run the following command and save the cert KEY.
The key is of the form
Bridge obfs4 <IP ADDRESS>:<PORT> <FINGERPRINT> cert=KEY iat-mode=0 . You will need it when you’re connecting to the VPN.
6. Testing the connections.
Open up your VPN client and change the ip from 443 to 444 in order to connect to the proxy instead of the OpenVPN server.
After that, find the Pluggable Transport option in your OpenVPN client and see if it supports obfs4.
If everything works, then you’re all set! Congratulations! Only a few more things to tweak before using this VPN from the outside world.
In order to access the OpenVPN server from the outside world we need to unblock the ports, because they are most likely blocked. As you remember, I have reserved my PI’s IP address on my router to always be
192.168.1.125 so it doesn’t change if the PI disconnects or if the router reboots.

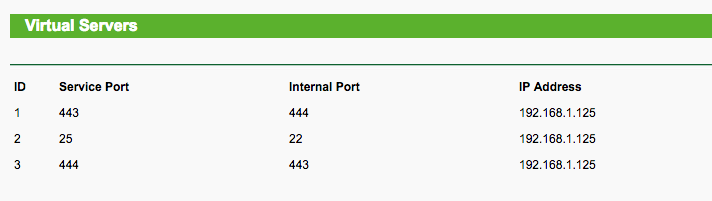

This way I have defined the following rules in my Port Forwarding table:
The outside port 443 will point to the obfuscation’s server port 444. If you don’t have an obfuscation server, then leave 443->443.
The port 25 will point to the PI’s SSH port 22. This is only for my own convenience.
In case I want to access the OpenVPN server directly without the obfuscation proxy, I have created a rule 444->443
The service port is the OUTSIDE port that will be used with your PUBLIC IP address. To find your public IP, use a service like whatsmyip.com.
The internal port is the INSIDE port. It can be used only when you are connected to the network.
Note: The first rule is saying redirect all the connections from PUBLIC_IP:443 to 192.168.1.125:444
- Find your public IP and replace your old IP with the public IP in the .ovpn file or in the VPN client.
- Connect to the VPN.
In most cases, your IP will change because it’s a dynamic IP. A way to overcome this is to create a small program on the PI that saves your IP and sends you an email every day or so. You may also store the IP in an online database such as Firebase.

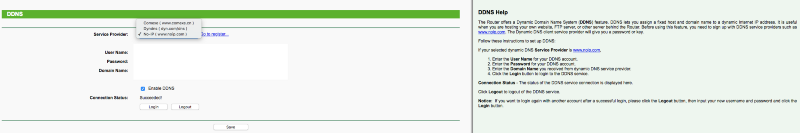

My router has Dynamic DNS setting. This way I can use a service provider like NoIP and get a domain like
example.no-ip.com that will always point to my public IP address.
- A Childs Garden Of Pluggable Transports
If you have any questions hit me up on Twitter.
